INSTALLATION

PROCEDURE

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

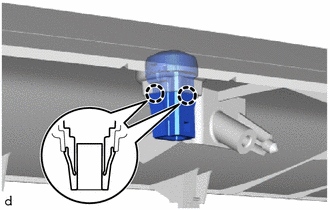

(a) Engage the claws to install the automatic light control sensor.

2. INSTALL INSTRUMENT MAIN PANEL

Click here

3. INSTALL FRONT PILLAR GARNISH LH

Click here

4. INSTALL FRONT PILLAR GARNISH RH

HINT:

Use the same procedure as for the LH side.

5. CONNECT NO. 1 ROOF HEADLINING MOULDING LH

Click here

6. CONNECT NO. 1 ROOF HEADLINING MOULDING RH

HINT:

Use the same procedure as for the LH side.
