REMOVAL

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Lane tracing assist system

    Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.

    Pre-collision system

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

Click here

2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

3. REMOVE HORN BUTTON ASSEMBLY

Click here

4. REMOVE STEERING WHEEL ASSEMBLY

(a) Disconnect each connector.

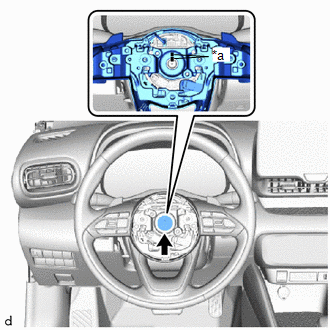

(b) Using a 10 mm hexagon socket wrench, remove the steering wheel assembly set bolt.

*a

Matchmark

(c) Put matchmarks on the steering wheel assembly and steering main shaft.

(d) Temporarily install the steering wheel assembly set bolt.

NOTICE:

Do not overtighten the steering wheel assembly set bolt.

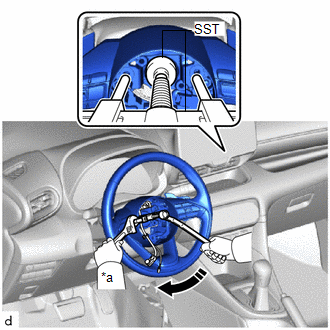

(e) Using SST, separate the steering wheel assembly.

*a

Hold

Turn

SST: 09950-50013

09951-05010

09952-05010

09953-05020

09954-05031

09957-04010

SST: 09950-60011

09951-00330

NOTICE:

Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

(f) Remove the steering wheel assembly set bolt and steering wheel assembly.

5. REMOVE NO. 1 STEERING WHEEL ORNAMENT

Click here

6. REMOVE STEERING PAD SWITCH ASSEMBLY

Click here

    Components

    COMPONENTS ILLUSTRATION *1 NO. 1 STEERING WHEEL ORNAMENT *2 STEERING PAD SWITCH ASSEMBLY *3 STEERING WHEEL ASSEMBLY - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...

    Installation

    INSTALLATION PROCEDURE 1. INSTALL STEERING PAD SWITCH ASSEMBLY Click here 2. INSTALL NO. 1 STEERING WHEEL ORNAMENT Click here 3. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY Click here 4...
