Components

COMPONENTS

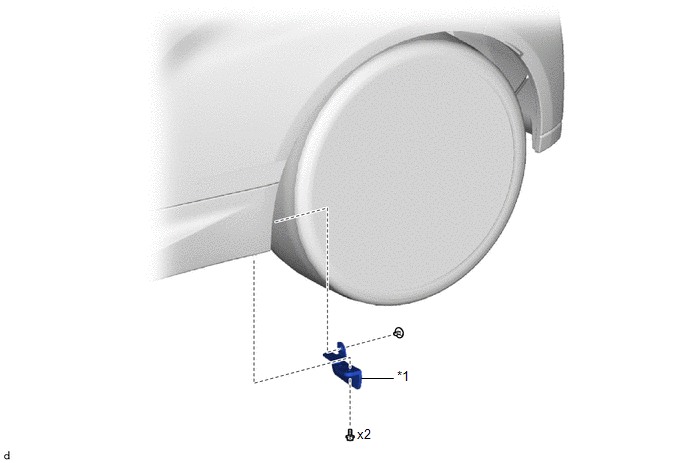

ILLUSTRATION

REAR WHEEL HOUSE FRONT PLATE

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL HOUSE FRONT PLATE

(a) Remove the clip.

(b) Remove the 2 screws and rear wheel house front plate.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL REAR WHEEL HOUSE FRONT PLATE

(a) Install the rear wheel house front plate with the 2 screws.

(b) Install the clip.
