Toyota Yaris: Rear Spoiler / Installation

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Installation

INSTALLATION

PROCEDURE

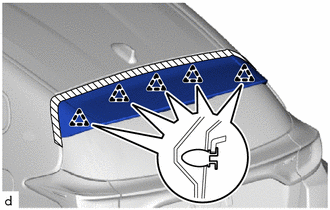

1. INSTALL REAR SPOILER ASSEMBLY

(a) Engage the clips to install the rear spoiler assembly.

(b) Install the 2 bolts and 3 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

(c) Remove the protective tape.

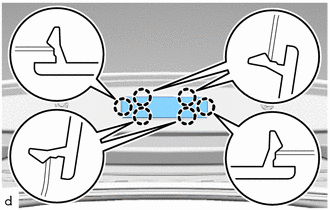

2. INSTALL REAR SPOILER HOLE COVER

(a) Install the 4 rear spoiler hole covers.

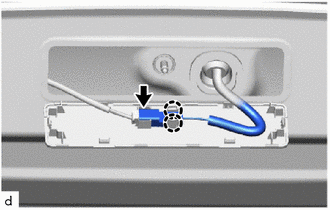

3. INSTALL CENTER STOP LIGHT COVER

(a) connect the connector and engage the claws.

(b) Engage the claws to install the center stop light cover.

    Reassembly

    REASSEMBLY PROCEDURE 1. INSTALL REAR SPOILER SEAL HINT: When installing the rear spoiler seal, heat the rear spoiler assembly using a heat light. Heating Temperature: Item Temperature Rear Spoiler Assembly 20 to 30°C (68 to 86°F) CAUTION: Do not touch the heat light and heated parts, touching the heat light may result in burns...

    Rear Wheel House Plate

    ComponentsCOMPONENTS ILLUSTRATION *1 REAR WHEEL HOUSE FRONT PLATE - - RemovalREMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides...
