DESCRIPTION

The waste gate valve is built into the turbine housing and is operated by the vacuum regulating valve assembly. The ECM uses duty control to open and close the vacuum regulating valve assembly. The amount of opening is controlled according to the operation status.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P024313

Turbocharger/Supercharger Wastegate Solenoid "A" Circuit Open

Open or short in vacuum regulating valve assembly circuit for 1 second or more (1 trip detection logic)

  • Open or short in vacuum regulating valve assembly circuit
  • Vacuum regulating valve assembly
  • ECM

Does not come on

SAE: P0243

MONITOR DESCRIPTION

This DTC is stored when an open or short is detected in the vacuum regulating valve assembly circuit. When an excessively high or low duty cycle malfunction occurs in the vacuum regulating valve assembly during vacuum regulating valve assembly drive, the stores this DTC.

MONITOR STRATEGY

Required Sensors/Components (Main)

Vacuum regulating valve assembly

Frequency of Operation

Continuous

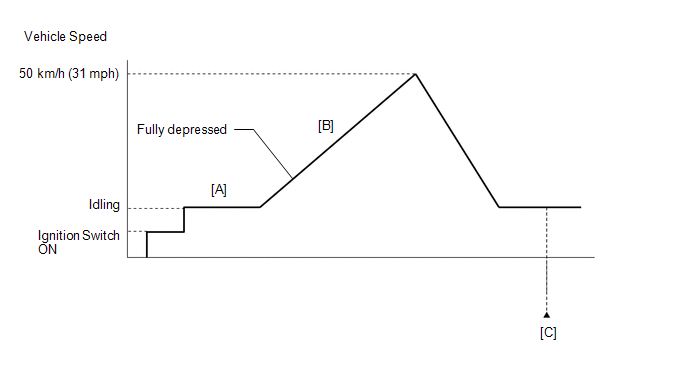

CONFIRMATION DRIVING PATTERN

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON.
  7. Turn the GTS on.
  8. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
  9. Accelerate to 50 km/h (31 mph) or more with the accelerator pedal fully depressed [B].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  10. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  11. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P024313.
  14. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform steps [B] and [C] again.

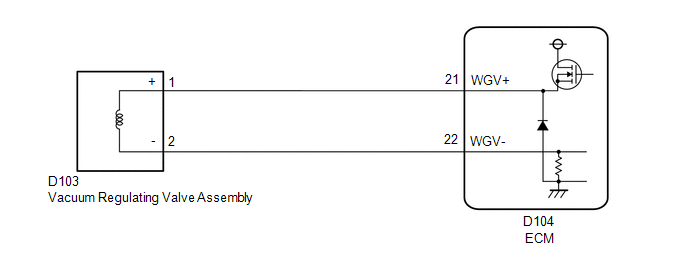

WIRING DIAGRAM

CAUTION / NOTICE / HINT

HINT:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

INSPECT VACUUM REGULATING VALVE ASSEMBLY

Click here

NG

REPLACE VACUUM REGULATING VALVE ASSEMBLY

OK

2.

CHECK HARNESS AND CONNECTOR (VACUUM REGULATING VALVE ASSEMBLY - ECM)

(a) Disconnect the vacuum regulating valve assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D103-1(+) - D104-21(WGV+)

Always

Below 1 Ω

D103-2(-) - D104-22(WGV-)

Always

Below 1 Ω

D103-1(+) or D104-21(WGV+) - Body ground and other terminals

Always

10 kΩ or higher

D103-2(-) or D104-22(WGV-) - Body ground and other terminals

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK WHETHER DTC OUTPUT RECURS (DTC P024313)

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

(c) Start the engine and warm it up.

(d) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(e) Enter the following menus.

Powertrain > Engine > Utility

Tester Display

All Readiness

(f) Input the DTC: P024313.

(g) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

A

ABNORMAL

(P024313 is output)

B

A

CHECK FOR INTERMITTENT PROBLEMS

B

REPLACE ECM
