Toyota Yaris: Power Door Lock Control System / Parts Location
PARTS LOCATION

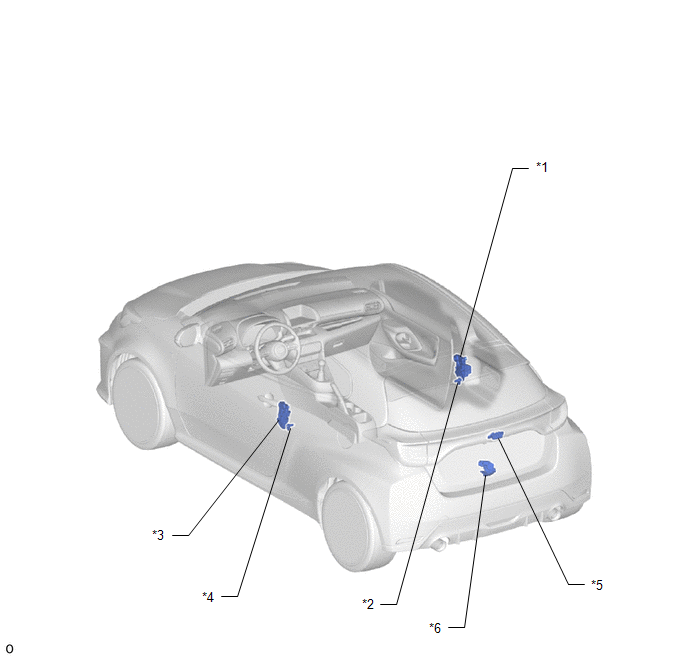

ILLUSTRATION
| *1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *5 | BACK DOOR OPENER SWITCH ASSEMBLY | *6 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |

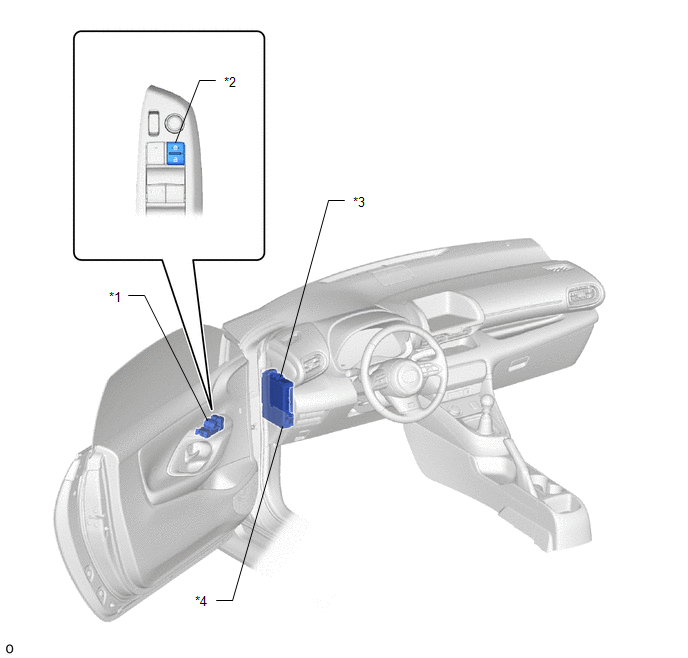

ILLUSTRATION
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | DOOR CONTROL SWITCH |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 2 FUSE - ECU-DCC NO. 2 FUSE - AM2 FUSE - D/L FUSE - DOOR BACK FUSE - DOOR BACK RELAY - ALL DOOR LOCK RELAY - ALL DOOR UNLOCK RELAY |
Precaution
PRECAUTION PRECAUTIONS WHEN USING GTS (a) When using the GTS with the ignition switch off to troubleshoot: Connect the GTS to the vehicle, and turn a courtesy light switch on and off at 1...
System Diagram
S..
