CUSTOMIZE PARAMETERS

CUSTOMIZE LIGHTING SYSTEM (EXT)

NOTICE:

  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.

HINT:

The following items can be customized.

(a) Customizing with the GTS

(1) Select the setting by referring to the table below.

Light Control

Tester Display

Description

Default

Setting

ECU

Tail Remind Buzzer Function

Sounds a buzzer when the driver door is opened with the light control switch in the tail or head position.

Enable

$00:Disable,$01:Enable

Main Body ECU

(Multiplex Network Body ECU)

Light up Clearance Lights at Door Unlock Function

Setting of the light up clearance lights at door unlock function

Enable

$00:Disable,$01:Enable

Main Body ECU

(Multiplex Network Body ECU)

Extended Headlight Lighting

Sets the headlight lighting time after the ignition switch is turned off.

30 s

$00:30sec,$01:60sec,$02:90sec,$03:120sec

Main Body ECU (Multiplex Network Body ECU)

Brightness Level Adjust (Lowering)

Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*A

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Brightness Level Adjust (Canceling)

Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*B

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Sensitivity Adjust

Adjusts the sensitivity of the automatic light control system.*C

Normal

$00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2

Main Body ECU

(Multiplex Network Body ECU)

Light Auto OFF Delay Setting

Taillight off timing setting when light control switch is in tail or head position.

30 s

$00:OFF,$01:30sec,$02:60sec,$03:90sec

Main Body ECU

(Multiplex Network Body ECU)

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

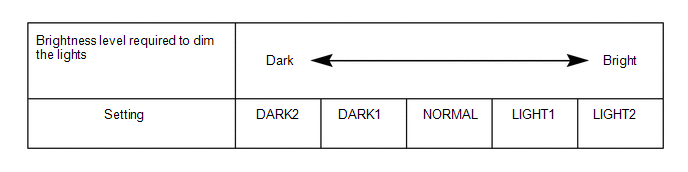

  • *A
  • *B
  • *C
