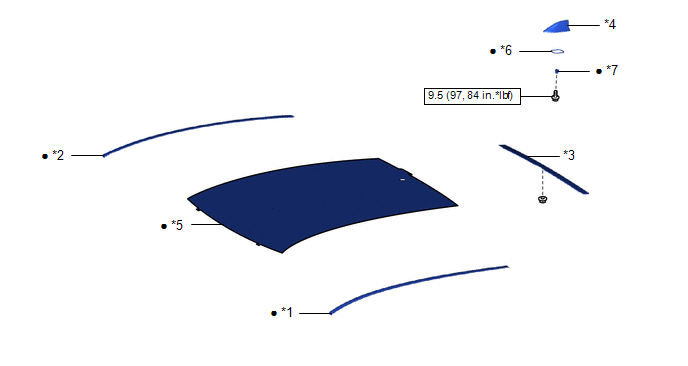

Toyota Yaris: Roof Garnish / Components

Roof Garnish

..

Removal

REMOVAL CAUTION / NOTICE / HINT NOTICE: Wash the vehicle to prevent oil and other dirt from remaining on the roof panel, which is the adhesive surface of the roof outside cover...

Other information:

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual: Reassembly

REASSEMBLY PROCEDURE 1. INSTALL NO. 3 OIL NOZZLE SUB-ASSEMBLY (a) Using a 5 mm hexagon wrench, install the 3 No. 3 oil nozzle sub-assemblies to the cylinder block sub-assembly with the 3 bolts. Torque: 10 N·m {102 kgf·cm, 7 ft·lbf} 2. INSTALL NO. 2 OIL NOZZLE SUB-ASSEMBLY (a) Using a 5 mm hexagon wrench, install the 3 No...

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual: Inspection

INSPECTION PROCEDURE 1. INSPECT STEERING WHEEL SWITCH HOUSING (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. *a Component without harness connected (Steering Wheel Switch Housing) - - Standard Resistance: Light Switch Circuit Tester Connection Condition Specified Condition z6-3 (T) - z4-3 (T) Always Below 1 Ω z6-12 (H) - z4-4 (H) Always Below 1 Ω z6-7 (A) - z4-5 (A) Always Below 1 Ω z6-16 (HU) - z4-6 (HU) Always Below 1 Ω z6-11 (HF) - z4-7 (HF) Always Below 1 Ω z6-8 (TR) - z4-8 (TR) Always Below 1 Ω z6-14 (TL) - z4-9 (TL) Always Below 1 Ω z6-6 (CR) - z4-10 (CR) Always Below 1 Ω z6-13 (BFG) - z4-11 (BFG) Always Below 1 Ω z6-4 (B) - z4-12 (B) Always Below 1 Ω z6-5 (EL) - z4-13 (EL) Always Below 1 Ω Wiper Switch Circuit Tester Connection Condition Specified Condition z5-10 (W_OFF) - z4-24 (W_OFF) Always Below 1 Ω z5-13 (+S) - z4-25 (+S) Always Below 1 Ω z5-11 (+1) - z4-26 (+1) Always Below 1 Ω z5-12 (+2) - z4-27 (+2) Always Below 1 Ω z5-14 (MIST) - z4-28 (MIST) Always Below 1 Ω z5-15 (WF) - z4-31 (WF) Always Below 1 Ω z5-5 (E) - z4-33 (E) Always Below 1 Ω z5-4 (VR) - z4-34 (VR) Always Below 1 Ω If the result is not as specified, replace the steering wheel switch housing...
