COMPONENTS

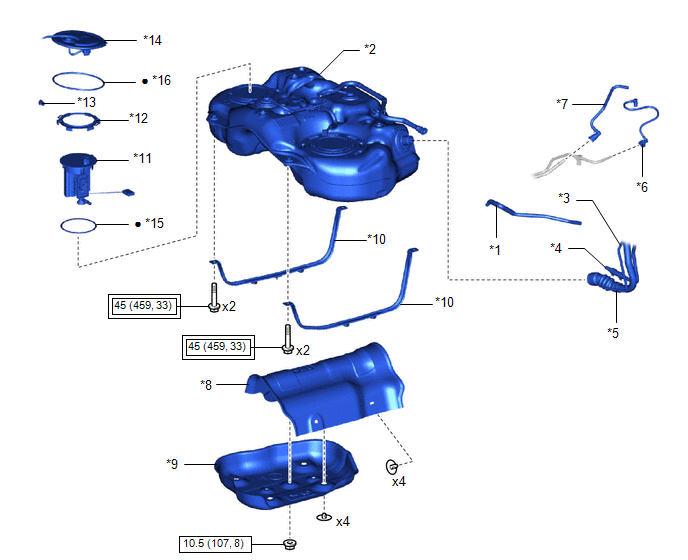

ILLUSTRATION

*1

CHARCOAL CANISTER OUTLET HOSE

*2

FUEL TANK ASSEMBLY

*3

NO. 6 FUEL TANK BREATHER TUBE

*4

FUEL TANK FILLER PIPE SUB-ASSEMBLY

*5

FUEL TANK TO FILLER PIPE HOSE

*6

FUEL TANK MAIN TUBE SUB-ASSEMBLY

*7

NO. 1 FUEL EMISSION TUBE SUB-ASSEMBLY

*8

NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY

*9

NO. 2 FUEL TANK PROTECTOR

*10

FUEL TANK BAND SUB-ASSEMBLY

*11

FUEL TANK VENT TUBE ASSEMBLY

*12

FUEL PUMP GAUGE RETAINER

*13

NO. 1 FUEL TUBE CLAMP

*14

FLOOR SERVICE HOLE COVER

*15

GASKET

*16

BUTYL TAPE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

    Fuel Tank

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel tank assembly removal/installation are shown below...
