Toyota Yaris: Hood Lock Control Cable Assembly / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Exterior / Door / Hatch / Hood Lock Control Cable Assembly / Components

COMPONENTS

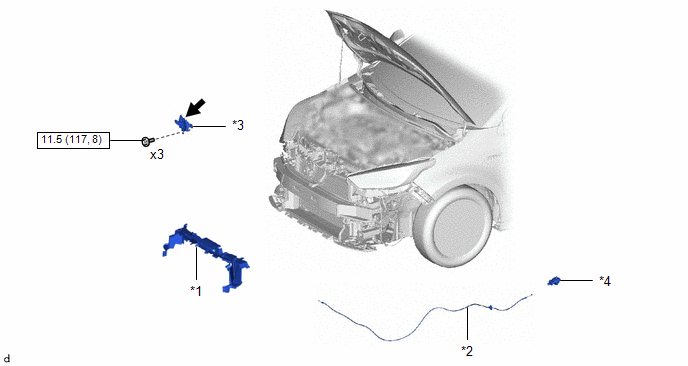

ILLUSTRATION

*1

RADIATOR UPPER AIR GUIDE PLATE

*2

HOOD LOCK CONTROL CABLE ASSEMBLY

*3

HOOD LOCK ASSEMBLY

*4

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

    Hood Lock Control Cable Assembly

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE FRONT BUMPER ASSEMBLY Click here 2. REMOVE RADIATOR UPPER AIR GUIDE PLATE Click here 3. REMOVE FRONT FENDER LINER LH HINT: Use the same procedure as for front fender liner RH...
