COMPONENTS

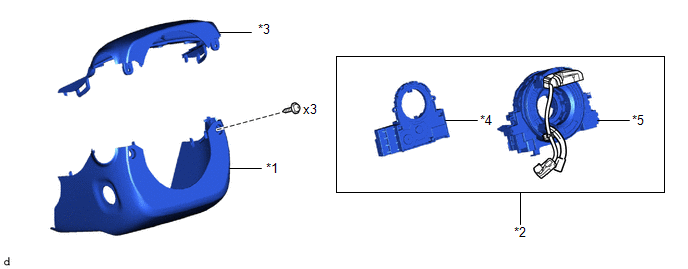

ILLUSTRATION

*1

LOWER STEERING COLUMN COVER

*2

SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

*3

UPPER STEERING COLUMN COVER

*4

STEERING SENSOR

*5

SPIRAL CABLE SUB-ASSEMBLY

-

-

    Spiral Cable

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the spiral cable with sensor sub-assembly removal/installation are shown below...
