COMPONENTS

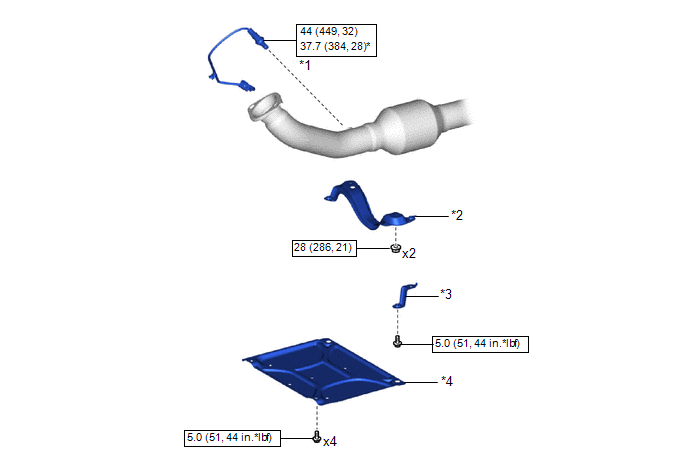

ILLUSTRATION

*1

NO. 2 AIR FUEL RATIO SENSOR

*2

CENTER NO. 1 FLOOR BRACE

*3

CENTER FRONT FLOOR BRACE

*4

CENTER NO. 4 ENGINE UNDER COVER

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

    Air Fuel Ratio Sensor (for Sensor 2)

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No...
