TERMINALS OF ECU

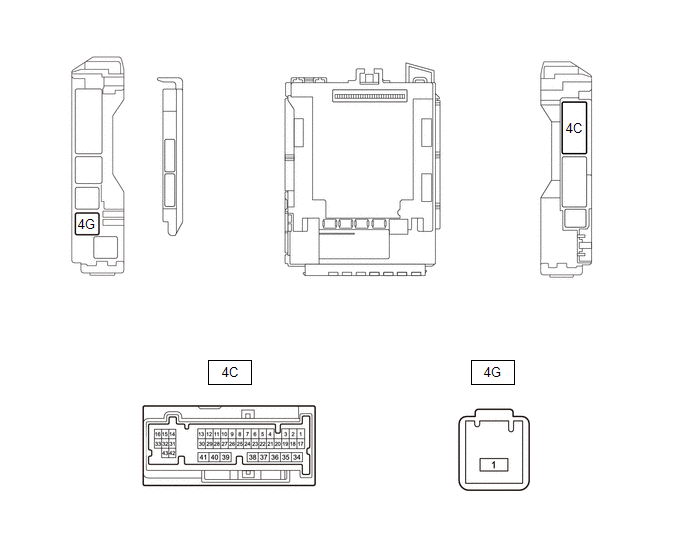

CHECK POWER DISTRIBUTION BOX ASSEMBLY

(a) Remove the power distribution box assembly.

Click here

(b) Reconnect the power distribution box assembly connectors.

Standard:

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
4G-1 - Body ground	Power source	Ignition switch off	11 to 14 V
4C-25 - Body ground	Ground	Always	Below 1 Ω
4C-39 - Body ground	Power source output (seat heater LH)	Ignition switch off	Below 1 Ω
4C-39 - Body ground	Power source output (seat heater LH)	Ignition switch ON	11 to 14 V
4C-40 - Body ground	Power source output (seat heater RH)	Ignition switch off	Below 1 Ω
4C-40 - Body ground	Power source output (seat heater RH)	Ignition switch ON	11 to 14 V

Problem Symptoms Table

PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table...
