SYSTEM DIAGRAM

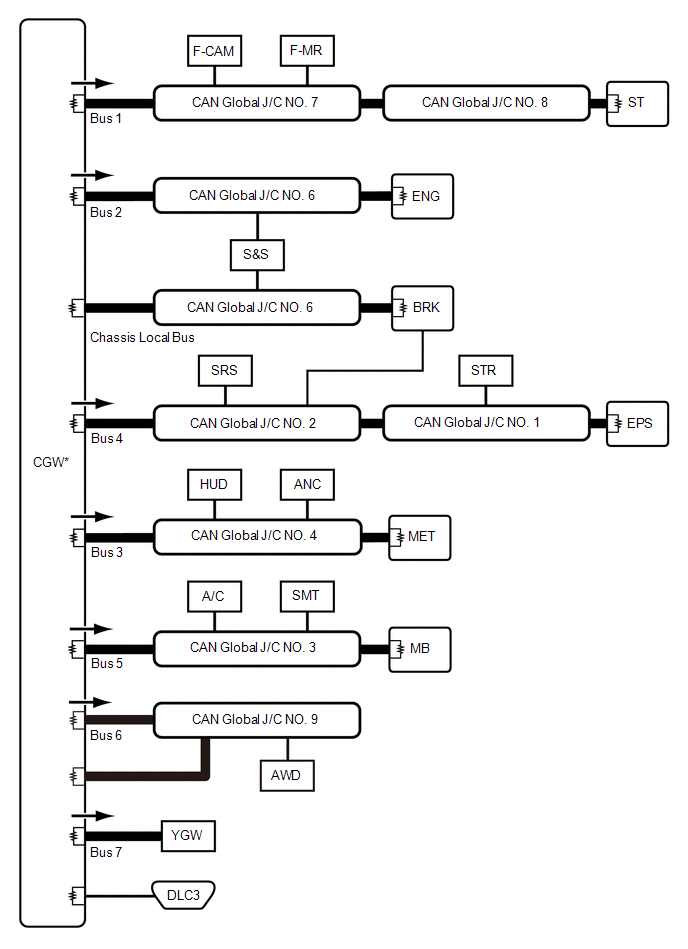

(a) The CAN communication system is composed of 8 buses.

CAN Main Bus Line

Terminating Resistor

CAN Branch Line

*

Gateway Function Equipped ECU

Bus Monitoring Direction

-

-

Connected to

Code

ECU/Sensor Name

GTS Display

Applicability

-

CGW

Central Gateway ECU (Network Gateway ECU)

-

Installed on all vehicles

-

DLC3

DLC3

-

Installed on all vehicles

Bus 1

F-CAM

Forward Recognition Camera

Front Camera Module

w/ Toyota Safety Sense

F-MR

Millimeter Wave Radar Sensor Assembly

Front Radar

w/ Toyota Safety Sense

CAN Global J/C NO. 7

No. 7 Global CAN Junction Connector

-

Installed on all vehicles

CAN Global J/C NO. 8

No. 8 Global CAN Junction Connector

-

Installed on all vehicles

ST

No. 1 CAN Junction Terminal

-

Installed on all vehicles

Bus 2

S&S

Engine Stop and Start ECU

Stop and Go/Start

Installed on all vehicles

ENG

ECM

ECM (Engine)

Installed on all vehicles

CAN Global J/C NO. 6

No. 6 Global CAN Junction Connector

-

Installed on all vehicles

Bus 3

HUD

Meter Mirror Sub-assembly

Head Up Display

w/ Headup Display

ANC

Stereo Component Equalizer Assembly

Active Noise Control

w/ Active Noise Control System

MET

Combination Meter Assembly

Combination Meter

Installed on all vehicles

CAN Global J/C NO. 4

No. 4 Global CAN Junction Connector

-

Installed on all vehicles

Bus 4

SRS

Airbag Sensor Assembly

Airbag

Installed on all vehicles

BRK

Brake Actuator Assembly

Skid Control (ABS/VSC/TRAC)

Installed on all vehicles

STR

Steering Sensor

Spiral cable (Steering Angle Sensor)

Installed on all vehicles

EPS

Power Steering ECU Assembly

Power Steering (EPS)

Installed on all vehicles

CAN Global J/C NO. 1

No. 1 Global CAN Junction Connector

-

Installed on all vehicles

CAN Global J/C NO. 2

No. 2 Global CAN Junction Connector

-

Installed on all vehicles

Bus 5

A/C

Air Conditioning Amplifier Assembly

Air Conditioning Amplifier

Installed on all vehicles

SMT

Certification ECU (Smart Key ECU Assembly)

  • Certification (Smart)
  • Power Management

Installed on all vehicles

MB

Main Body ECU (Multiplex Network Body ECU)

Main Body

Installed on all vehicles

CAN Global J/C NO. 3

No. 3 Global CAN Junction Connector

-

Installed on all vehicles

Bus 6

AWD

4WD ECU Assembly

Four Wheel Drive Control

Installed on all vehicles

CAN Global J/C NO. 9

No. 9 Global CAN Junction Connector

-

Installed on all vehicles

Bus 7

YGW

Option Connector (Bus Buffer ECU)

Remote Engine Starter

Installed on all vehicles

Chassis Local Bus

S&S

Engine Stop and Start ECU

-

Installed on all vehicles

BRK

Brake Actuator Assembly

-

Installed on all vehicles

CAN Global J/C NO. 6

No. 6 Global CAN Junction Connector

-

Installed on all vehicles

    Parts Location

    PARTS LOCATION ILLUSTRATION *1 FORWARD RECOGNITION CAMERA (w/ Toyota Safety Sense) *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Toyota Safety Sense) *3 BRAKE ACTUATOR ASSEMBLY *4 ECM ILLUSTRATION *1 4WD ECU ASSEMBLY - - ILLUSTRATION *1 COMBINATION METER ASSEMBLY *2 METER MIRROR SUB-ASSEMBLY (w/ Headup Display) *3 CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *5 AIR CONDITIONING AMPLIFIER ASSEMBLY *6 AIRBAG SENSOR ASSEMBLY *7 POWER STEERING ECU ASSEMBLY *8 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) *9 STEERING SENSOR *10 ENGINE STOP AND START ECU *11 STEREO COMPONENT EQUALIZER ASSEMBLY (w/ Active Noise Control System) *12 POWER DISTRIBUTION BOX ASSEMBLY *13 DLC3 - - ILLUSTRATION *1 NO...

    System Description

    SYSTEM DESCRIPTION BRIEF DESCRIPTION (a) The Controller Area Network (CAN) is a serial data communication system for real time application. It is a vehicle multiplex communication system which has a high communication speed and the ability to detect malfunctions...
