Components

COMPONENTS

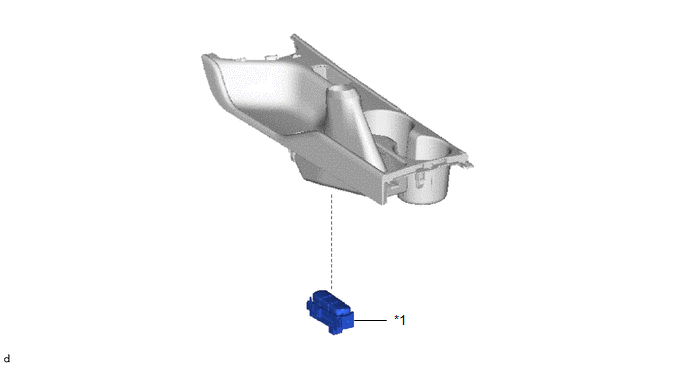

ILLUSTRATION

*1

ECO RUN CANCEL SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY)

-

-

Removal

REMOVAL

PROCEDURE

1. REMOVE ECO RUN CANCEL SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY)

Click here

Inspection

INSPECTION

PROCEDURE

1. INSPECT ECO RUN CANCEL SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

H18-6 (ECU) - H18-5 (E)

Eco run cancel switch assembly (combination switch assembly) being pushed and held

Below 50 Ω

Eco run cancel switch assembly (combination switch assembly) not pushed

10 kΩ or higher

If the result is not as specified, replace the eco run cancel switch assembly (combination switch assembly).

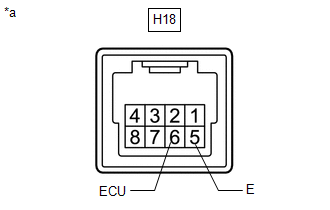

*a

Component without harness connected

(Eco Run Cancel Switch Assembly (Combination Switch Assembly))

Installation

INSTALLATION

PROCEDURE

1. INSTALL ECO RUN CANCEL SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY)

Click here

    STA Signal Circuit

    DESCRIPTION While the engine is being cranked, a starter operation request signal is sent to terminal STA of the ECM. HINT: If there is an open in the STA circuit of the ECM, stop and start control will be prohibited after the third time the engine is started by stop and start control...

    Vacuum Sensor Assembly

    ComponentsCOMPONENTS ILLUSTRATION *1 VACUUM SENSOR GROMMET *2 VACUUM SENSOR ASSEMBLY ● Non-reusable part - - On-vehicle InspectionON-VEHICLE INSPECTION PROCEDURE 1...
