Toyota Yaris: Center Airbag Sensor Assembly / Removal

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Vehicle Interior / Supplemental Restraint Systems / Center Airbag Sensor Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the airbag sensor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effects / Inoperative when not performed

Link

Replacement of the yaw rate and acceleration sensor (airbag sensor assembly)

Calibration

  • DTCs are stored
  • Slip indicator light illuminates
  • VSC disabled or malfunctions

ECU Data Initialization

Active torque split AWD system

ECU security key

Vehicle control history (RoB) are stored

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Lane tracing assist system

    Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

    Pre-collision system

    Parking support brake system

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

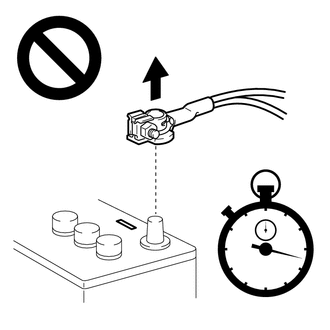

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

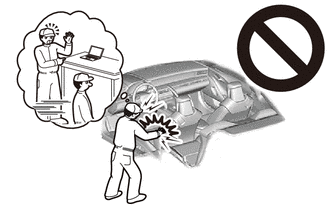

  • If the airbag deploys for any reason, it may cause a serious accident.

3. REMOVE REAR CONSOLE BOX ASSEMBLY

Click here

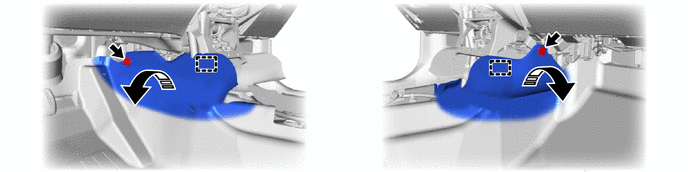

4. DISCONNECT FRONT FLOOR CARPET ASSEMBLY

(a) Remove the 2 clips.

(b) Disengage the hooks to disconnect the front floor carpet assembly as shown in the illustration.

Disconnect in this Direction

-

-

5. REMOVE AIRBAG SENSOR ASSEMBLY

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

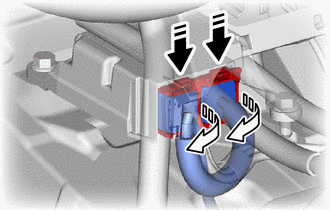

(c) Pull out the 2 connectors with its connector lock pushed to disconnect the 2 connectors.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

Push the Connector Lock

Pull Out the Lock Lever

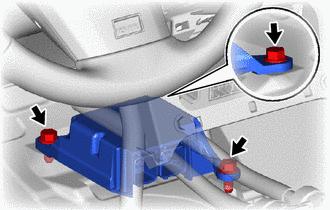

(d) Remove the 3 bolts and airbag sensor assembly.

NOTICE:

If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the airbag sensor assembly with a new one.

    Components

    COMPONENTS ILLUSTRATION *1 FRONT FLOOR CARPET ASSEMBLY *2 AIRBAG SENSOR ASSEMBLY Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...

    Installation

    INSTALLATION CAUTION / NOTICE / HINT NOTICE: After replacing the airbag sensor assembly, make sure to perform ECU configuration. After performing the ECU configuration procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal...
