INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for RH Side)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

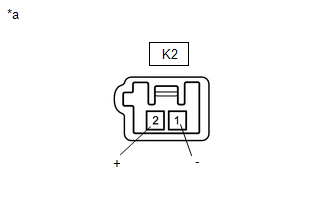

K2-2 (+) - K2-1 (-)

Always

4.0 Ω

If the result is not as specified, replace the front No. 1 speaker assembly.

*a

Component without harness connected

(Front No. 1 Speaker Assembly)

2. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY (for LH Side)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

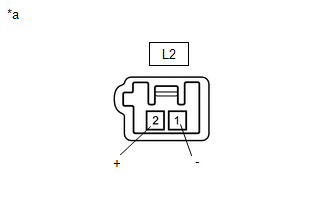

L2-2 (+) - L2-1 (-)

Always

4.0 Ω

If the result is not as specified, replace the front No. 1 speaker assembly.

*a

Component without harness connected

(Front No. 1 Speaker Assembly)
