Toyota Yaris: Front Door Lock / Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front door with motor lock assembly removal/installation are shown below.
HINT:
-
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the power switch is turned to on (IG), the servo motor standard position is recognized.
-
-
Learning completes when vehicle is driven
- Use the same procedure for the LH side and RH side.
- The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Click here

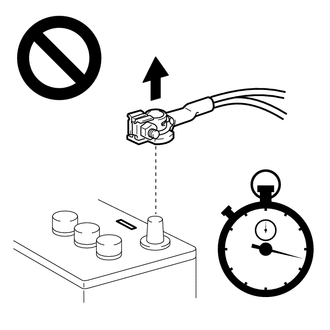

CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here
4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)
Click here
5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)
Click here
6. REMOVE FRONT DOOR TRIM GARNISH
Click here
7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
8. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
Click here
9. REMOVE FRONT DOOR SERVICE HOLE COVER
Click here
10. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)
Click here
11. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)
Click here
12. REMOVE FRONT DOOR WITH MOTOR LOCK ASSEMBLY

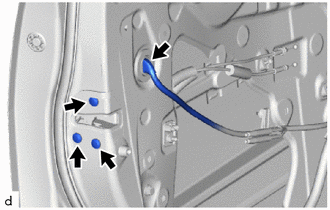

| (a) Disconnect the connector. |
|
(b) Using a T30 "TORX" socket wrench, remove the 3 screws.

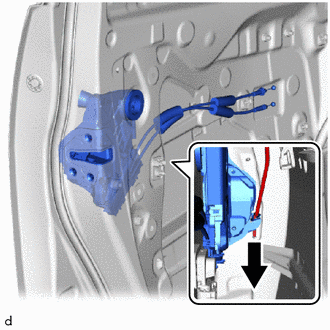

| (c) Disconnect the front door lock open rod as shown in the illustration. |
|
(d) Remove the front door with motor lock assembly.
(e) When reusing the front door with motor lock assembly:

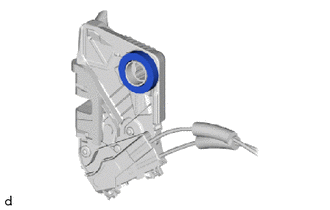

| (1) Remove the door lock wiring harness seal from the front door with motor lock assembly. |
|
13. REMOVE FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE

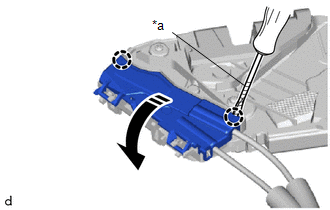

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
| *a | Protective Tape |
 | Remove in this Direction |

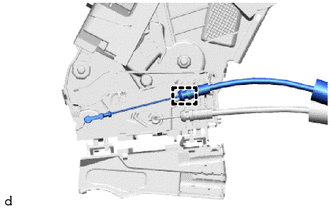

| (b) Disengage the guide to remove the front door lock open lever remote control cable from the front door with motor lock assembly. |
|
14. REMOVE FRONT DOOR LOCK/UNLOCK KNOB INSIDE LOCKING CABLE

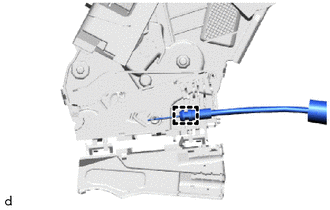

| (a) Disengage the guide to remove the front door lock/unlock knob inside locking cable from the front door with motor lock assembly. |
|
Components
COMPONENTS ILLUSTRATION
*A for Driver Side *B for Front Passenger Side *1 FRONT DOOR LOWER FRAME BRACKET GARNISH *2 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL *3 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL *4 FRONT DOOR TRIM GARNISH *5 FRONT DOOR TRIM BOARD SUB-ASSEMBLY *6 FRONT DOOR GLASS INNER WEATHERSTRIP ILLUSTRATION
*A for Driver Side - - *1 FRONT DOOR SERVICE HOLE COVER *2 FRONT DOOR OUTSIDE HANDLE ASSEMBLY *3 FRONT DOOR LOCK CYLINDER ASSEMBLY *4 FRONT DOOR WITH MOTOR LOCK ASSEMBLY *5 FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE *6 FRONT DOOR LOCK/UNLOCK KNOB INSIDE LOCKING CABLE *7 DOOR LOCK WIRING HARNESS SEAL *8 FRONT DOOR SERVICE HOLE COVER CLIP *9 HOLE PLUG - -
N*m (kgf*cm, ft...
Inspection
INSPECTION PROCEDURE 1. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH (a) Check the resistance of the lock and unlock switch. (1) Measure the resistance according to the value(s) in the table below...
