Toyota Yaris: Automatic High Beam Main Switch / Removal
REMOVAL
PROCEDURE
1. REMOVE CENTER LOWER INSTRUMENT COVER
Click here
.gif)
2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
Click here
3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY
Click here
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Click here
5. REMOVE CONSOLE BOX ASSEMBLY
Click here
6. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
7. REMOVE COWL SIDE TRIM BOARD LH
Click here
8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
9. DISCONNECT NO. 1 ROOF HEADLINING MOULDING LH
Click here
10. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Click here
11. REMOVE NO. 1 INSTRUMENT SIDE PANEL
Click here
12. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Click here
13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
14. REMOVE AUTO HIGH BEAM SWITCH

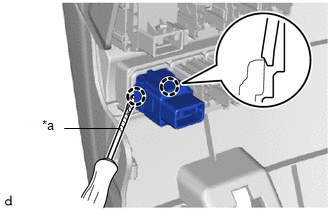

| (a) Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the auto high beam switch as shown in the illustration. |
|
Components
COMPONENTS ILLUSTRATION
*1 CENTER LOWER INSTRUMENT COVER *2 LOWER INSTRUMENT PANEL FINISH PANEL *3 SWITCH HOLE BASE SUB-ASSEMBLY *4 SHIFT LEVER KNOB SUB-ASSEMBLY *5 CONSOLE BOX ASSEMBLY - - ILLUSTRATION
*1 FRONT DOOR SCUFF PLATE LH *2 COWL SIDE TRIM BOARD LH *3 NO...
Inspection
INSPECTION PROCEDURE 1. INSPECT AUTO HIGH BEAM SWITCH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
