COMPONENTS

ILLUSTRATION

*1

CENTER LOWER INSTRUMENT COVER

*2

LOWER INSTRUMENT PANEL FINISH PANEL

*3

SWITCH HOLE BASE SUB-ASSEMBLY

*4

SHIFT LEVER KNOB SUB-ASSEMBLY

*5

CONSOLE BOX ASSEMBLY

-

-

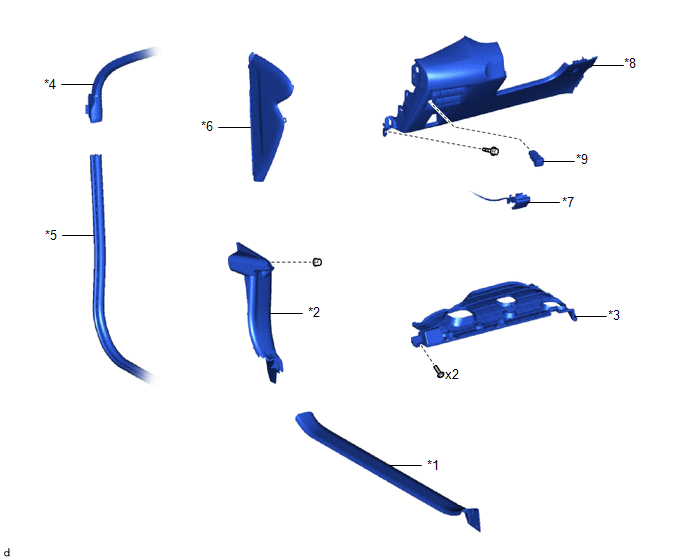

ILLUSTRATION

*1

FRONT DOOR SCUFF PLATE LH

*2

COWL SIDE TRIM BOARD LH

*3

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*4

NO. 1 ROOF HEADLINING MOULDING LH

*5

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*6

NO. 1 INSTRUMENT SIDE PANEL

*7

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

*8

LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

*9

AUTO HIGH BEAM SWITCH

-

-

    Automatic High Beam Main Switch

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE CENTER LOWER INSTRUMENT COVER Click here 2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL Click here 3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY Click here 4...
