REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

  • When removing and installing the combination meter glass, make sure not to touch the display panel.
  • Do not allow any dirt (fingerprints, grease, etc.) to adhere to the combination meter glass. If the glass is dirty, wipe it clean with a soft cloth.

PROCEDURE

1. INSTALL COMBINATION METER GLASS

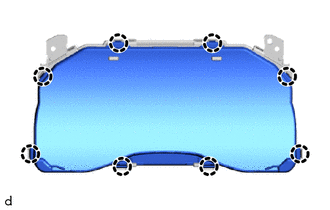

(a) Engage the claws to install the combination meter glass.
