Toyota Yaris: Combination Meter / Installation
INSTALLATION
PROCEDURE
1. INSTALL COMBINATION METER ASSEMBLY
(a) Connect the 2 connectors.

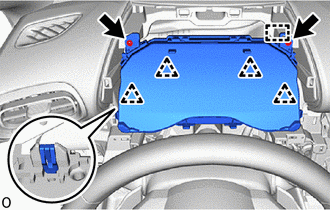

| (b) Engage the guide and clips to install the combination meter assembly. |
|
(c) Install the 2 screws.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Click here
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Click here
5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
6. INSTALL NO. 1 INSTRUMENT SIDE PANEL
Click here
7. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Click here
8. CONNECT NO. 1 ROOF HEADLINING MOULDING LH
Click here
9. INSTALL COWL SIDE TRIM BOARD LH
Click here
10. INSTALL FRONT DOOR SCUFF PLATE LH
Click here
11. INSTALL CONSOLE BOX ASSEMBLY
Click here
12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Click here
13. INSTALL SWITCH HOLE BASE SUB-ASSEMBLY
Click here
14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
Click here
15. INSTALL CENTER LOWER INSTRUMENT COVER
Click here
16. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
17. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
