PARTS LOCATION

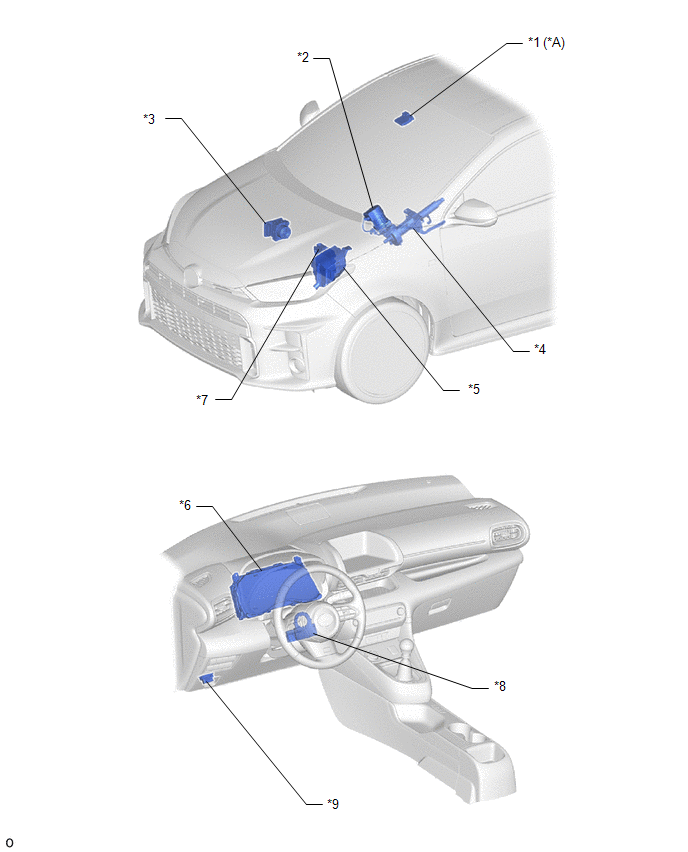

ILLUSTRATION

*A	w/ Toyota Safety Sense	-	-
*1	FORWARD RECOGNITION CAMERA	*2	POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR
*3	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*4	ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR
*5	NO. 1 ENGINE ROOM RELAY BLOCK - EPS FUSE	*6	COMBINATION METER ASSEMBLY
*7	ECM	*8	STEERING SENSOR
*9	DLC3	-	-

Precaution

PRECAUTION HANDLING PRECAUTIONS FOR SRS AIRBAG SYSTEM (a) This vehicle is equipped with a Supplemental Restraint System (SRS). Failure to carry out service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing...
