Toyota Yaris: Power Steering System / System Diagram

Toyota Yaris XP210 (2020-2023) Reapir and Service Manual / Steering / Power Assist Systems / Power Steering System / System Diagram

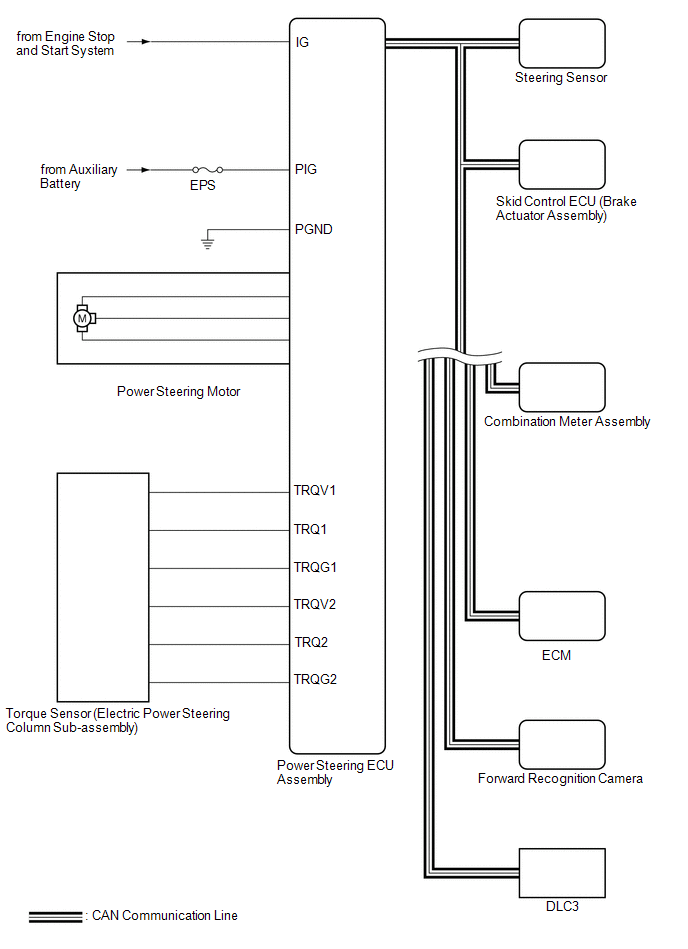

SYSTEM DIAGRAM

    Parts Location

    PARTS LOCATION ILLUSTRATION *A w/ Toyota Safety Sense - - *1 FORWARD RECOGNITION CAMERA *2 POWER STEERING ECU ASSEMBLY - POWER STEERING MOTOR *3 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) *4 ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY - TORQUE SENSOR *5 NO...

    System Description

    SYSTEM DESCRIPTION DESCRIPTION The power steering system generates torque through the operation of the motor and the reduction gear installed on the column shaft in order to assist steering effort...
