Toyota Yaris: Switch Housing / Inspection
INSPECTION
PROCEDURE
1. INSPECT STEERING WHEEL SWITCH HOUSING
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.

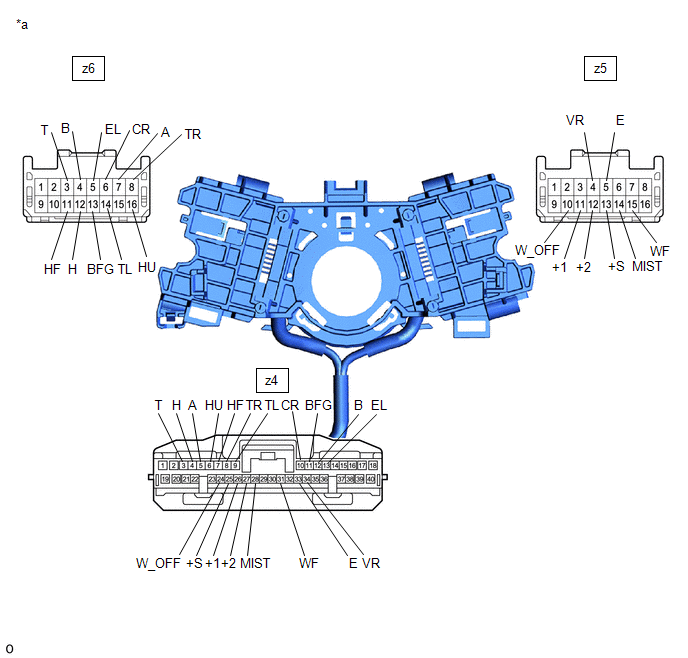

| *a | Component without harness connected (Steering Wheel Switch Housing) | - | - |
Standard Resistance:
Light Switch Circuit| Tester Connection | Condition | Specified Condition |
|---|---|---|
| z6-3 (T) - z4-3 (T) | Always | Below 1 Ω |
| z6-12 (H) - z4-4 (H) | Always | Below 1 Ω |
| z6-7 (A) - z4-5 (A) | Always | Below 1 Ω |
| z6-16 (HU) - z4-6 (HU) | Always | Below 1 Ω |
| z6-11 (HF) - z4-7 (HF) | Always | Below 1 Ω |
| z6-8 (TR) - z4-8 (TR) | Always | Below 1 Ω |
| z6-14 (TL) - z4-9 (TL) | Always | Below 1 Ω |
| z6-6 (CR) - z4-10 (CR) | Always | Below 1 Ω |
| z6-13 (BFG) - z4-11 (BFG) | Always | Below 1 Ω |
| z6-4 (B) - z4-12 (B) | Always | Below 1 Ω |
| z6-5 (EL) - z4-13 (EL) | Always | Below 1 Ω |
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| z5-10 (W_OFF) - z4-24 (W_OFF) | Always | Below 1 Ω |
| z5-13 (+S) - z4-25 (+S) | Always | Below 1 Ω |
| z5-11 (+1) - z4-26 (+1) | Always | Below 1 Ω |
| z5-12 (+2) - z4-27 (+2) | Always | Below 1 Ω |
| z5-14 (MIST) - z4-28 (MIST) | Always | Below 1 Ω |
| z5-15 (WF) - z4-31 (WF) | Always | Below 1 Ω |
| z5-5 (E) - z4-33 (E) | Always | Below 1 Ω |
| z5-4 (VR) - z4-34 (VR) | Always | Below 1 Ω |
If the result is not as specified, replace the steering wheel switch housing.
