Toyota Yaris: Switch Housing / Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.
.gif)
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. REMOVE SPIRAL CABLE SUB-ASSEMBLY
Click here
2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
Click here
3. REMOVE TURN SIGNAL SWITCH
Click here
4. REMOVE STEERING WHEEL SWITCH HOUSING

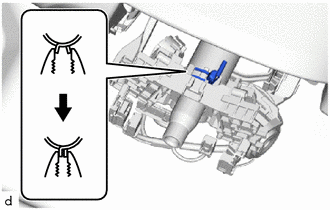

| (a) Using pliers, expand the clamp as shown in the illustration. |
|

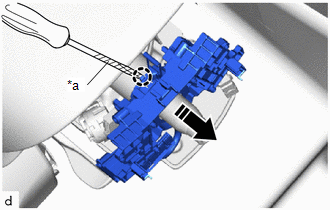

(b) While holding the clamp expanded, using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the steering wheel switch housing as shown in the illustration.
| *a | Protective Tape |
.png) | Remove in this Direction |
Inspection
INSPECTION PROCEDURE 1. INSPECT STEERING WHEEL SWITCH HOUSING (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
Installation
INSTALLATION PROCEDURE 1. INSTALL STEERING WHEEL SWITCH HOUSING (a) When reusing the steering wheel switch housing: (1) Using pliers, expand the clamp and temporarily install the steering wheel switch housing as shown in the illustration...
