Toyota Yaris: Switch Housing / Components

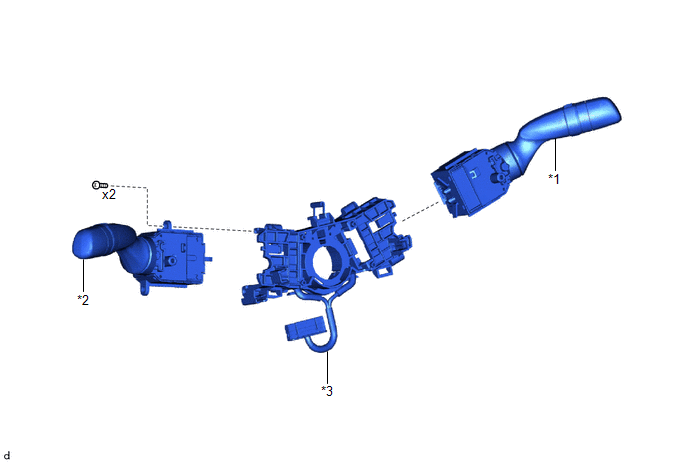

Switch Housing

..

Inspection

INSPECTION PROCEDURE 1. INSPECT STEERING WHEEL SWITCH HOUSING (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...

Other information:

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual: Data List / Active Test

DATA LIST / ACTIVE TEST DATA LIST NOTICE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not. HINT: Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts...

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual: Inspection

INSPECTION PROCEDURE 1. INSPECT STEERING PAD SWITCH ASSEMBLY (w/ Dynamic Radar Cruise Control System) (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. *a Component without harness connected (Steering Pad Switch Assembly) *b Up *c Down *d Right *e Left *f OK *g Back *h On/off Hook *i Voice *j Volume+ *k Volume- *l Seek+ *m Seek- *n MODE *o +RES *p -SET *q CANCEL *r Lane Tracing Assist *s Distance Control *t Cruise Control Main Standard Resistance: Tester Connection Condition Specified Condition 3 (AU1) - 10 (EAU) No switch pushed 95 to 105 kΩ 3 (AU1) - 10 (EAU) Seek+ switch pushed Below 2...
