DESCRIPTION

The speed sensor detects wheel speed and sends the appropriate signals to the skid control ECU (brake actuator assembly). These signals are used for brake control.

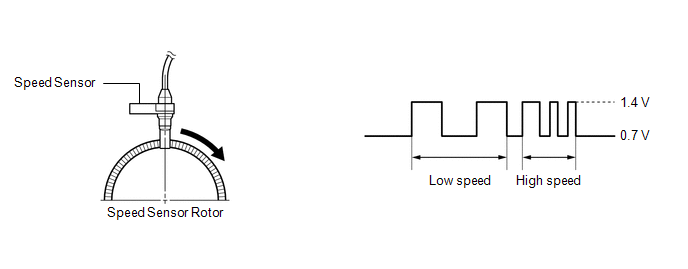

Speed sensor rotors have rows of alternating N and S magnetic poles, and their magnetic fields change when the rotors turn.

Each speed sensor detects that magnetic change and sends a pulse signal to the skid control ECU (brake actuator assembly).

HINT:

When the connectors between the speed sensor and skid control ECU (brake actuator assembly) are connected, the following waveform is output.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

DTC Output from

C050C1F

Left Rear Wheel Speed Sensor Circuit Intermittent

Any of the following is detected:

  • When the +BS terminal voltage is 17.4 V or less, an open in the sensor signal circuit of a malfunctioning area occurs 255 times or more.
  • When the +BS terminal voltage is 17.4 V or less at a vehicle speed of 20 km/h (12 mph) or more, noise occurs in the sensor signals of a malfunctioning wheel 75 times or more within 5 seconds.
  • When the +BS terminal voltage is 17.4 V or less at a vehicle speed of 10 km/h (6 mph) or more, noise occurs once per rotor rotation for 15 seconds or more.
  • Rear speed sensor LH
  • Wire harness and connector
  • Rear speed sensor rotor LH (rear axle hub and bearing assembly LH)
  • Skid control ECU (brake actuator assembly)

Brake

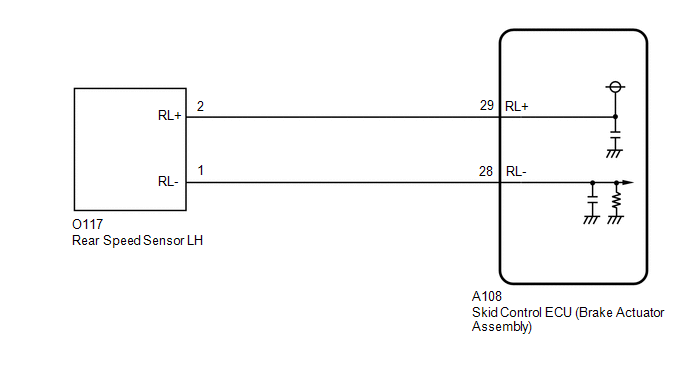

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform "Calibration".

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

  • After replacing or removing and installing a speed sensor rotor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

READ VALUE USING GTS (RL SPEED SENSOR VOLTAGE OPEN)

(a) Operate the GTS to check the Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

RL Speed Sensor Voltage Open

Rear speed sensor LH voltage open detection

Under intermittent / Normal

Under intermittent: Momentary interruption detected

Normal: Momentary interruption not detected

-

Chassis > Brake > Data List

Tester Display

RL Speed Sensor Voltage Open

(b) Select the line graph display.

(c) Check for any momentary interruption in the wire harness and connector.

Click here

OK:

Normal (There are no momentary interruptions.)

NOTICE:

Perform the above inspection before removing the sensor and connector.

NG

GO TO STEP 5

OK

2.

READ VALUE USING GTS (RL WHEEL SPEED)

(a) Operate the GTS to check the Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0.0 mph)

Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

RL Wheel Speed

(b) Drive the vehicle and perform a road test.

(c) Check the speed value output from the speed sensor displayed on the GTS.

HINT:

Factors that affect the indicated vehicle speed include tire size, tire pressure, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart.

Click here

OK:

The speed value output from the speed sensor displayed on the GTS is similar to the speed indicated on the speedometer.

NG

GO TO STEP 5

OK

3.

CLEAR DTC

(a) Operate the GTS to clear the codes.

Chassis > Brake > Clear DTCs

(b) Press the DTC clear button.

(c) Turn the ignition switch off.

NEXT

4.

RECONFIRM DTC

(a) Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.

(b) Operate the GTS to read the DTCs.

Chassis > Brake > Trouble Codes

(c) Check if the same DTC is output.

Result

Proceed to

C050C1F is not output

A

C050C1F is output

B

A

USE SIMULATION METHOD TO CHECK

B

REPLACE BRAKE ACTUATOR ASSEMBLY

5.

CHECK REAR SPEED SENSOR LH INSTALLATION

(a) Turn the ignition switch off.

*1

Rear Speed Sensor LH

*a

Correct

*b

Incorrect

*c

8.5 Nm

*d

No clearance

(b) Check the rear speed sensor LH installation.

OK:

There is no clearance between the rear speed sensor LH and rear axle carrier sub-assembly LH.

The installation bolt is tightened properly.

Torque

8.5 N*m (87 kgf*cm, 75 in.*lbf)

NG

REINSTALL OR REPLACE REAR SPEED SENSOR LH

OK

6.

CHECK REAR SPEED SENSOR LH AND REAR SPEED SENSOR ROTOR LH (CHECK FOR FOREIGN MATTER)

(a) Remove the rear speed sensor LH and the component with the rear speed sensor rotor LH.

  • for rear speed sensor LH: Click here
  • for rear speed sensor rotor LH: Click here

(b) Check the rear speed sensor LH tip and rear speed sensor rotor LH.

OK:

No scratches, oil, or foreign matter on the rear speed sensor LH tip and rear speed sensor rotor LH.

NOTICE:

  • If there is oil or foreign matter on the rear speed sensor LH, clean the rear speed sensor LH.
  • If the rear speed sensor LH is damaged, replace the rear speed sensor LH with a new one.
  • Do not use parts cleaner when cleaning the rear speed sensor rotor LH.
  • If the rear speed sensor rotor LH is damaged, replace the rear speed sensor rotor LH with a new one.

HINT:

  • The rear speed sensor rotor LH is incorporated into the rear axle hub and bearing assembly LH.
  • If the rear speed sensor rotor LH needs to be replaced, replace it together with the rear axle hub and bearing assembly LH.
NG

CLEAN OR REPLACE REAR SPEED SENSOR LH OR COMPONENT WITH REAR SENSOR ROTOR LH

OK

7.

CHECK HARNESS AND CONNECTOR (REAR SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A108 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the O117 rear speed sensor LH connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O117-2 (RL+) - A108-29 (RL+)

Always

Below 1 Ω

O117-2 (RL+) or A108-29 (RL+) - Body ground

Always

10 kΩ or higher

O117-1 (RL-) - A108-28 (RL-)

Always

Below 1 Ω

O117-1 (RL-) or A108-28 (RL-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

8.

INSPECT BRAKE ACTUATOR ASSEMBLY (SENSOR POWER SOURCE CIRCUIT)

(a) Reconnect the A108 skid control ECU (brake actuator assembly) connector.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of wire harness connector

(to Rear Speed Sensor LH)

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

O117-2 (RL+) - Body ground

Ignition switch ON

11 to 14 V

OK

REPLACE REAR SPEED SENSOR LH

NG

REPLACE BRAKE ACTUATOR ASSEMBLY
