Toyota Yaris: Vehicle Stability Control System / Left Front Wheel Speed Sensor Circuit Short to Ground or Open (C050014)

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Brake / Brake Control / Dynamic Control Systems / Vehicle Stability Control System / Left Front Wheel Speed Sensor Circuit Short to Ground or Open (C050014)

DESCRIPTION

Refer to DTC C05001F.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

DTC Output from

C050014

Left Front Wheel Speed Sensor Circuit Short to Ground or Open

An open in the speed sensor signal circuit continues for 0.5 seconds or more.

  • Front speed sensor LH
  • Wire harness and connector
  • Skid control ECU (brake actuator assembly)

Brake

WIRING DIAGRAM

Refer to DTC C05001F.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform "Calibration".

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

READ VALUE USING GTS (FL SPEED OPEN)

(a) Operate the GTS to check the Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FL Speed Open

Front speed sensor LH open detection

Under intermittent / Normal

Under intermittent: Momentary interruption detected

Normal: Momentary interruption not detected

-

Chassis > Brake > Data List

Tester Display

FL Speed Open

(b) Select the line graph display.

(c) Check for any momentary interruption in the wire harness and connector.

Click here

OK:

Normal (There are no momentary interruptions.)

NOTICE:

Perform the above inspection before removing the sensor and connector.

NG

GO TO STEP 5

OK

2.

READ VALUE USING GTS (FL WHEEL SPEED)

(a) Operate the GTS to check the Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0.0 mph)

Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FL Wheel Speed

(b) Drive the vehicle and perform a road test.

(c) Check the speed value output from the speed sensor displayed on the GTS.

HINT:

Factors that affect the indicated vehicle speed include tire size, tire pressure, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart.

Click here

OK:

The speed value output from the speed sensor displayed on the GTS is similar to the speed indicated on the speedometer.

NG

GO TO STEP 5

OK

3.

CLEAR DTC

(a) Operate the GTS to clear the codes.

Chassis > Brake > Clear DTCs

(b) Press the DTC clear button.

(c) Turn the ignition switch off.

NEXT

4.

RECONFIRM DTC

(a) Based on the Freeze Frame Data and interview with the customer, attempt to reproduce the conditions when the malfunction occurred.

(b) Operate the GTS to read the DTCs.

Chassis > Brake > Trouble Codes

(c) Check if the same DTC is output.

Result

Proceed to

C050014 is not output

A

C050014 is output

B

A

USE SIMULATION METHOD TO CHECK

B

REPLACE BRAKE ACTUATOR ASSEMBLY

5.

INSPECT HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Turn the ignition switch off.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(c) Disconnect the A108 skid control ECU (brake actuator assembly) connector.

(d) Disconnect the A22 front speed sensor LH connector.

(e) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A22-1 (FL+) - A108-18 (FL+)

Always

Below 1 Ω

A22-1 (FL+) or A108-18 (FL+) - Body ground

Always

10 kΩ or higher

A22-2 (FL-) - A108-17 (FL-)

Always

Below 1 Ω

A22-2 (FL-) or A108-17 (FL-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

6.

INSPECT BRAKE ACTUATOR ASSEMBLY (SENSOR POWER SOURCE CIRCUIT)

(a) Reconnect the A108 skid control ECU (brake actuator assembly) connector.

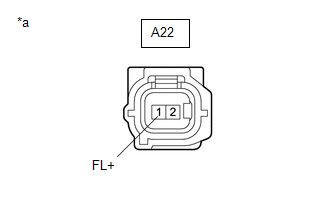

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A22-1 (FL+) - Body ground

Ignition switch ON

11 to 14 V

OK

REPLACE FRONT SPEED SENSOR LH

NG

REPLACE BRAKE ACTUATOR ASSEMBLY
