Toyota Yaris: Vehicle Stability Control System / Left Front Wheel Speed Sensor Circuit Short to Battery (C050012)

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Brake / Brake Control / Dynamic Control Systems / Vehicle Stability Control System / Left Front Wheel Speed Sensor Circuit Short to Battery (C050012)

DESCRIPTION

Refer to DTC C05001F.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

DTC Output from

C050012

Left Front Wheel Speed Sensor Circuit Short to Battery

The speed sensor short signal is ON continuously for 0.5 seconds or more.

  • Front speed sensor LH
  • Wire harness and connector
  • Skid control ECU (brake actuator assembly)

Brake

WIRING DIAGRAM

Refer to DTC C05001F.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform "Calibration".

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A22 front speed sensor LH connector.

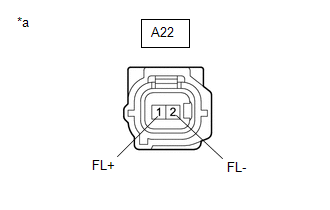

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the ignition switch to ON.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A22-1 (FL+) - A22-2 (FL-)

Ignition switch ON

11 to 14 V

OK

REPLACE FRONT SPEED SENSOR LH

NG

2.

CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Turn the ignition switch off.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(c) Disconnect the A108 skid control ECU (brake actuator assembly) connector.

*a

Front view of wire harness connector

(to Front Speed Sensor LH)

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A22-1 (FL-) - Body ground

Always

Below 1.5 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A22-1 (FL+) or A108-18 (FL+) - A22-2 (FL-) or A108-17 (FL-)

Always

10 kΩ or higher

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
