INSTALLATION

PROCEDURE

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

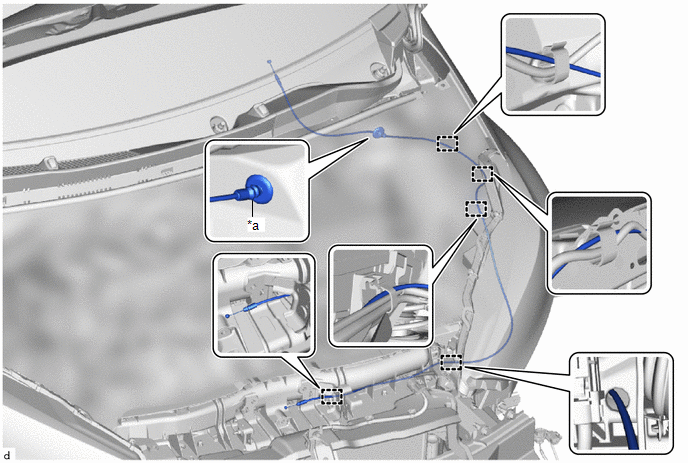

(a) Pass the hood lock control cable assembly into the engine compartment.

(b) Engage the grommet.

*a

Grommet

-

-

(c) Connect the hood lock control cable assembly to the clamps.

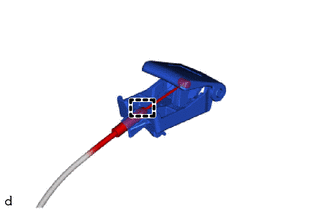

2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

(a) Connect the hood lock control cable assembly to install the hood lock control lever sub-assembly.

(b) Engage the guide.

3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

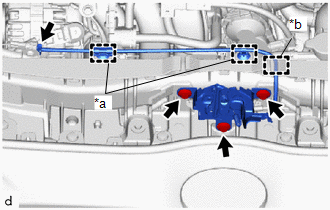

5. INSTALL HOOD LOCK ASSEMBLY

(a) Apply MP grease to the sliding areas of the hood lock assembly.

(b) Engage the guide to connect the hood lock control cable assembly.

(c) Install the hood lock assembly with the 3 bolts.

Torque:

11.5 N·m {117 kgf·cm, 8 ft·lbf}

*a

Clamp

*b

Guide

(d) w/ Engine Hood Courtesy Switch:

(1) Engage the gude and clamps.

(2) Connect the connector.

6. INSTALL FRONT FENDER LINER LH

HINT:

Use the same procedure as for front fender liner RH.

Click here

7. INSTALL RADIATOR UPPER AIR GUIDE PLATE

Click here

8. INSTALL FRONT BUMPER ASSEMBLY

Click here

9. INSPECT HOOD SUB-ASSEMBLY

Click here

10. ADJUST HOOD SUB-ASSEMBLY

Click here
