Toyota Yaris: Rear Seat Inner Belt Assembly / Inspection

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual / Vehicle Interior / Seat Belt / Rear Seat Inner Belt Assembly / Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SEAT INNER BELT ASSEMBLY LH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the rear seat inner belt assembly LH.
O20-5(LBR+) - O20-4(LBR-)	Rear seat belt LH unfastened	Below 1 Ω
O20-5(LBR+) - O20-4(LBR-)	Rear seat belt LH fastened	10 kΩ or higher

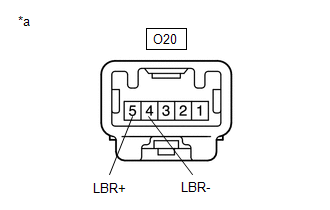

*a	Component without harness connected (Rear Seat Inner Belt Assembly LH)

2. INSPECT REAR SEAT INNER BELT ASSEMBLY RH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the rear seat inner belt assembly RH.
O19-5(RBR+) - O19-4(RBR-)	Rear seat belt RH unfastened	Below 1 Ω
O19-5(RBR+) - O19-4(RBR-)	Rear seat belt RH fastened	10 kΩ or higher

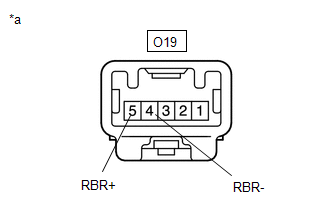

*a	Component without harness connected (Rear Seat Inner Belt Assembly RH)
