INSTALLATION

PROCEDURE

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH

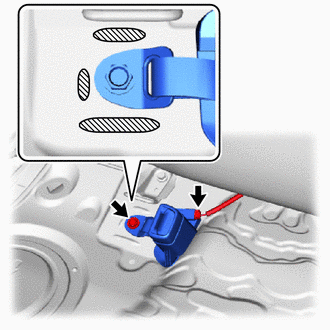

(a) Install the rear seat inner belt assembly LH with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

Protruding Part

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly LH to overlap the protruding parts of the vehicle body.

(b) Engage the connector clamp.

(c) Connect the connector.

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH

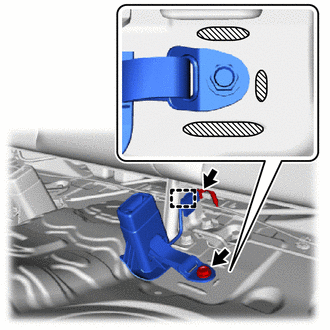

(a) Install the rear seat inner belt assembly RH with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

Protruding Part

NOTICE:

Do not allow the anchor part of the rear seat inner belt assembly RH to overlap the protruding parts of the vehicle body.

(b) Connect the connector.

3. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

4. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here
