Toyota Yaris: Fuel Pump (for High Pressure) / Inspection

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Engine & Hybrid System / G16e-gts (fuel) / Fuel Pump (for High Pressure) / Inspection

INSPECTION

PROCEDURE

1. INSPECT FUEL PUMP ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D24-1 - D24-2

20°C (68°F)

0.45 to 0.55 Ω

If the result is not as specified, replace the fuel pump assembly.

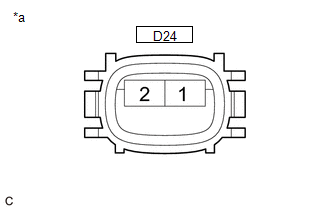

*a

Component without harness connected

(Fuel Pump Assembly)

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump assembly removal/installation are shown below...

    Installation

    INSTALLATION CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts...
