Toyota Yaris: Maintenance / Front Wiper Rubber

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / General / Maintenance / Front Wiper Rubber

Components

COMPONENTS

ILLUSTRATION

*1

FRONT WIPER BLADE

*2

FRONT WIPER RUBBER

*3

FRONT WIPER RUBBER BACKING PLATE

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:

  • Use the same procedure for the LH and RH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE FRONT WIPER BLADE

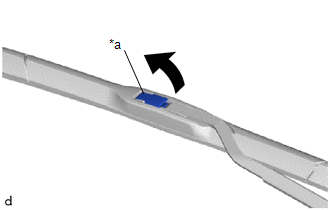

(a) Pull up the holder of the front wiper blade as shown in the illustration.

*a

Holder

Pull Up

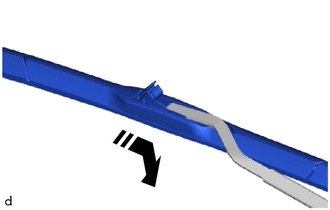

(b) Remove the front wiper blade from the front wiper arm as shown in the illustration.

NOTICE:

Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.

Remove in this Direction

2. REMOVE FRONT WIPER RUBBER

Remove in this Direction

(a) Remove the front wiper rubber with the 2 front wiper rubber backing plates from the front wiper blade as shown in the illustration.

(b) Remove the 2 front wiper rubber backing plates from the front wiper rubber as shown in the illustration.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

HINT:

  • Use the same procedure for the LH and RH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL FRONT WIPER RUBBER

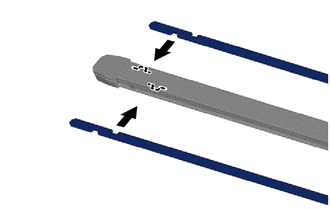

(a) Install the 2 front wiper rubber backing plates to the front wiper rubber as shown in the illustration.

NOTICE:

  • Align the protrusions on the front wiper rubber and the notches of the 2 backing plates.
  • Align the curves of the 2 backing plates and the windshield glass.

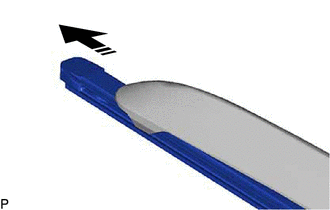

(b) Install the front wiper rubber with the 2 front wiper rubber backing plates to the front wiper blade as shown in the illustration.

Install in this Direction

NOTICE:

Push the front wiper rubber and 2 front wiper backing plates into the front wiper blade strongly to engage them securely.

2. INSTALL FRONT WIPER BLADE

Install in this Direction

(a) Install the front wiper blade to the front wiper arm as shown in the illustration.

(b) Rotate the holder of the front wiper blade as shown in the illustration.

*a

Holder

    Installation
