Toyota Yaris: Maintenance / G16e-gts Air Cleaner Filter Element

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / General / Maintenance / G16e-gts Air Cleaner Filter Element

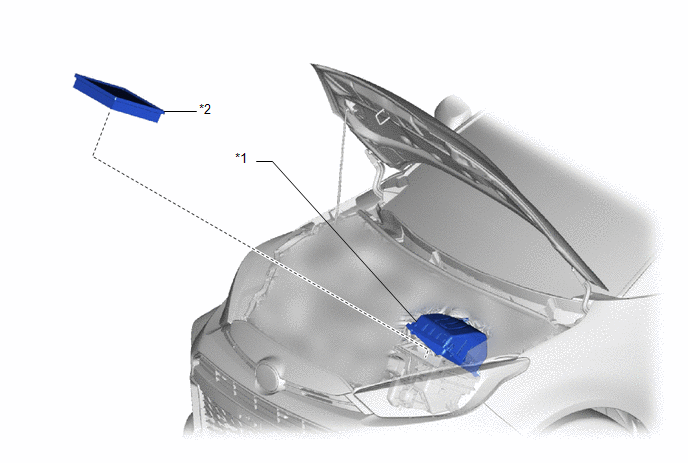

Components

COMPONENTS

ILLUSTRATION

*1

AIR CLEANER CAP SUB-ASSEMBLY

*2

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

Removal

REMOVAL

PROCEDURE

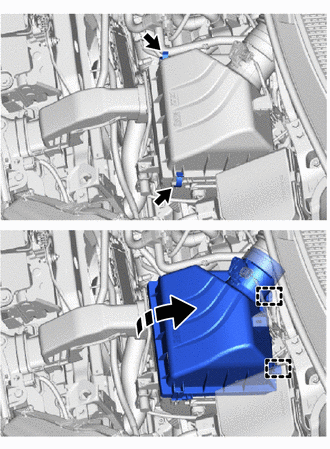

1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY

(a) Disconnect the 2 clamp hooks from the air cleaner cap sub-assembly.

(b) Disengage the 2 guides and separate the air cleaner cap sub-assembly together with air cleaner hose assembly from the air cleaner case sub-assembly.

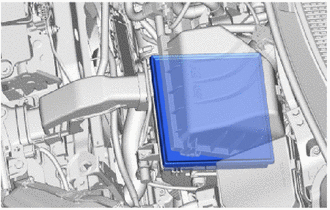

2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.

NOTICE:

Do not allow foreign matter to enter the air cleaner case sub-assembly.

3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

HINT:

This procedure is only performed when the air cleaner filter element sub-assembly will be reused.

(a) Check whether the air cleaner filter element sub-assembly is dirty or clogged.

(b) If the air cleaner filter element sub-assembly is dirty or has foreign matter adhered to it, clean the air cleaner filter element sub-assembly with compressed air.

NOTICE:

When cleaning the air cleaner filter element sub-assembly, blow the compressed air from the intake downstream side (from the throttle body with motor assembly side).

If the air cleaner filter element sub-assembly is still extremely dirty after cleaning it, replace the air cleaner filter element sub-assembly with a new one.

*a

Air Cleaner Filter Element Sub-assembly Intake Downstream Side (Throttle Body with Motor Assembly Side)

Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Check that the inside of the air cleaner case sub-assembly does not have dirt or deposits, and clean them away if they are present.

(b) Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.

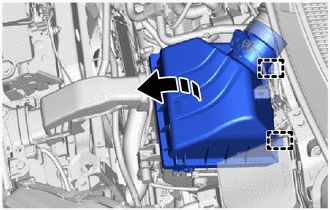

2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

(a) Engage the 2 guides and connect the air cleaner cap sub-assembly together with air cleaner hose assembly to the air cleaner case sub-assembly.

(b) Secure the air cleaner cap sub-assembly with the 2 clamp hooks.
