COMPONENTS

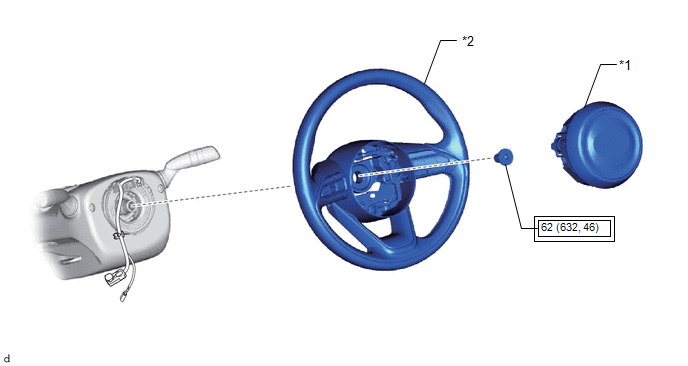

ILLUSTRATION

*1

HORN BUTTON ASSEMBLY

*2

STEERING WHEEL ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

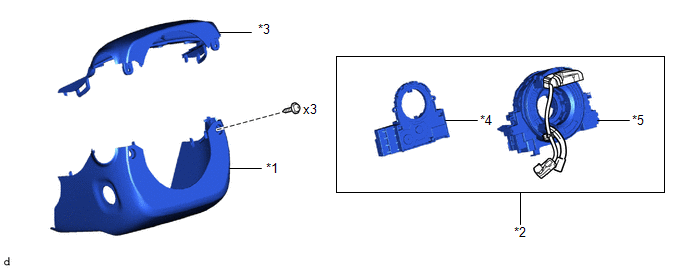

ILLUSTRATION

*1

LOWER STEERING COLUMN COVER

*2

SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

*3

UPPER STEERING COLUMN COVER

*4

STEERING SENSOR

*5

SPIRAL CABLE SUB-ASSEMBLY

-

-

    Steering Angle Sensor

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the steering angle sensor removal/installation are shown below...
