Toyota Yaris. Supplemental Restraint System Components

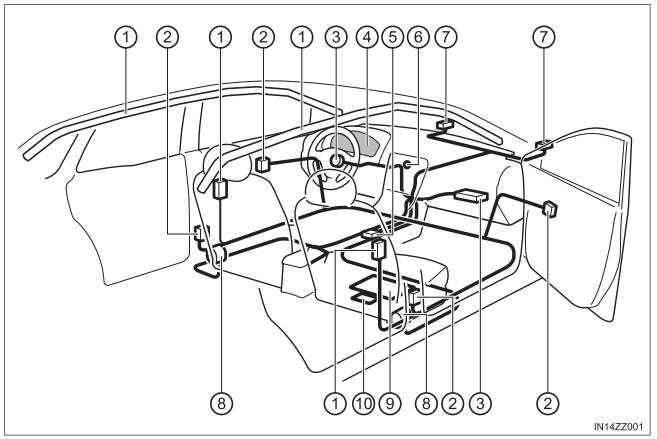

  1. Side and curtain inflators and air bags
  2. Side crash sensors
  3. Driver/Front passenger inflators and air bags
  4. Air bag/seat belt pretensioner system warning light
  5. Roll-over sensor, crash sensors, and diagnostic module (SAS unit)
  6. Front passenger air bag deactivation indicator light
  7. Front air bag sensors
  8. Seat belt pretensioners
  9. Front passenger occupant classification sensor
  10. Front passenger occupant classification module

    Supplemental Restraint System (SRS) Precautions

    The front and side supplemental restraint systems (SRS) include different types of air bags. Please verify the different types of air bags which are equipped on your vehicle by locating the “SRS AIRBAG” location indicators...

    How the SRS Air Bags Work

    Your Toyota is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident...
