Toyota Yaris: Windshield Outside Moulding / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Vehicle Exterior / Exterior Panels / Trim / Windshield Outside Moulding / Components

COMPONENTS

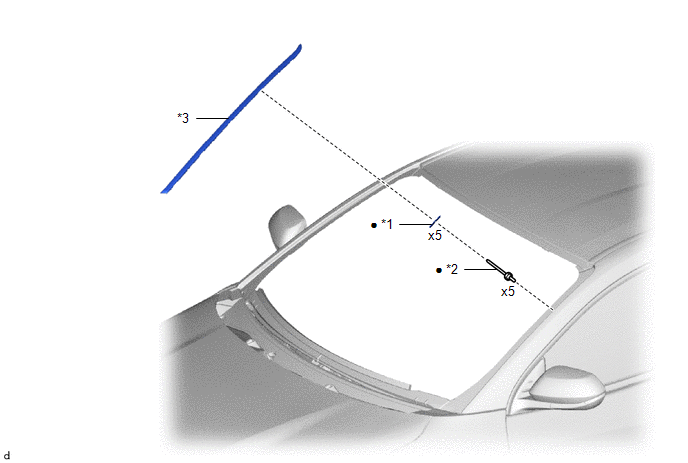

ILLUSTRATION

*1	NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP	*2	NO. 4 WINDSHIELD OUTSIDE MOULDING CLIP
*3	WINDSHIELD OUTSIDE MOULDING	-	-
●	Non-reusable part	-	-

Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1...
