Toyota Yaris: Backup Boost Converter / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / Engine & Hybrid System / Stop And Start / Backup Boost Converter / Components

COMPONENTS

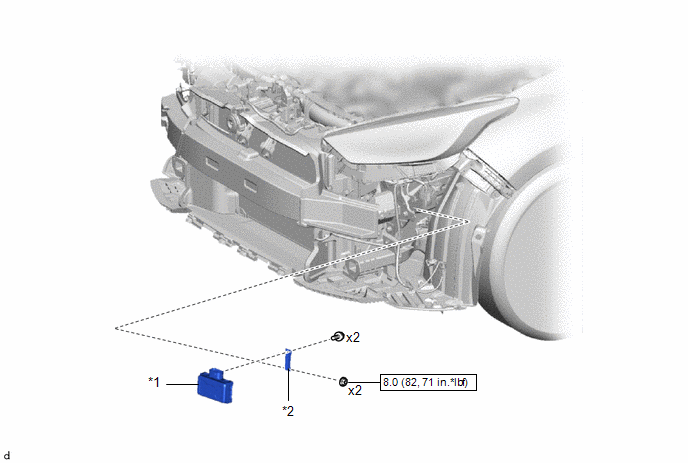

ILLUSTRATION

*1

ECO RUN VEHICLE CONVERTER ASSEMBLY

*2

NO. 1 CONVERTER CONTROL BRACKET

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Backup Boost Converter

    ..

    Installation

    INSTALLATION PROCEDURE 1. INSTALL NO. 1 CONVERTER CONTROL BRACKET (a) Install the No. 1 converter control bracket to the eco run vehicle converter assembly with the 2 bolts...
