Toyota Yaris: Gf1a (transfer / 4wd / Awd) / Transfer Case Front Oil Seal (for Rh Side)
Components
COMPONENTS

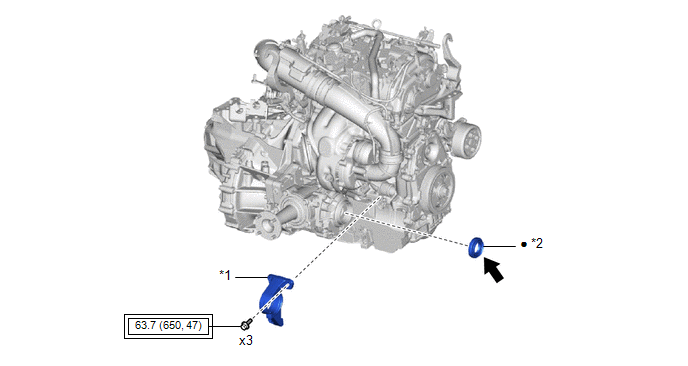

ILLUSTRATION
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | TRANSFER CASE OIL SEAL RH |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | MP Grease | - | - |
Replacement
REPLACEMENT
PROCEDURE
1. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
Click here
2. REMOVE DRIVE SHAFT BEARING BRACKET
Click here
3. REMOVE TRANSFER CASE OIL SEAL RH

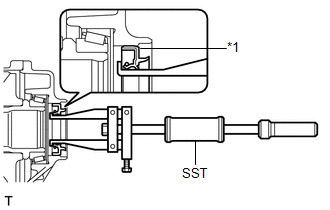

| *1 | Transfer Case Oil Seal RH |
(a) Using SST, remove the transfer case oil seal RH from the No. 1 transfer case cover.
SST: 09308-00010
NOTICE:
Do not scratch the press-fitting surface of the transfer case oil seal RH.
4. INSTALL TRANSFER CASE OIL SEAL RH

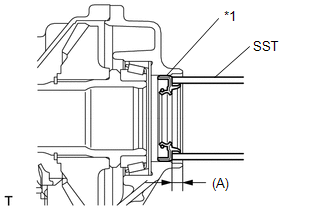

| *1 | Transfer Case Oil Seal RH |
(a) Coat the lip of a new drive shaft oil seal RH with MP grease.
(b) Using SST and a hammer, tap in a new transfer case oil seal RH as shown in the illustration.
SST: 09316-60012
09316-00011
Drive in depth (A):
7.5 to 8.5 mm (0.296 to 0.334 in.)
NOTICE:
- Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
- Do not tap the transfer case oil seal RH in too far.
5. INSTALL DRIVE SHAFT BEARING BRACKET
Click here
6. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
Click here
