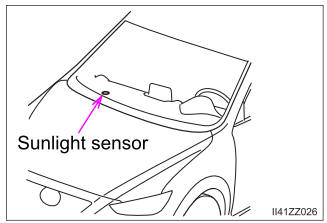

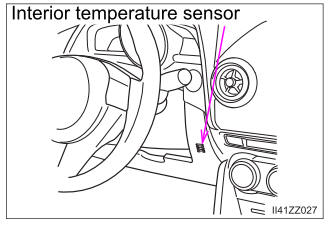

Toyota Yaris: Fully Automatic Type / Sunlight/Temperature Sensor

Windshield Defrosting and Defogging

Set the mode selector dial to the position and turn the fan control dial to the desired speed. In this position, the outside air position is automatically selected, and when the fan control dial is ON, the air conditioner automatically turns on...

Audio System

..

Other information:

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual: Terminals Of Ecu

TERMINALS OF ECU TERMINALS OF ECU *a Component without harness connected (Skid Control ECU [Brake Actuator Assembly]) - - Terminal No. (Symbol) Terminal Description 1 (GND2) Pump motor ground 2 - (Not used) 3 - (Not used) 4 - (Not used) 5 (STP2) Stop light switch assembly input 6 - (Not used) 7 - (Not used) 8 - (Not used) 9 - (Not used) 10 (CANL) CAN communication line L 11 - (Not used) 12 (IGR) ECU power supply input 13 (BM) Motor relay power supply 14 (SP1) Speed signal output for speedometer 15 (RR-) Rear wheel speed RH (-) signal input 16 (RR+) Rear wheel speed RH (+) power supply output 17 (FL-) Front wheel speed LH (-) signal input 18 (FL+) Front wheel speed LH (+) power supply output 19 - (Not used) 20 - (Not used) 21 - (Not used) 22 (CANH) CAN communication line H 23 - (Not used) 24 - (Not used) 25 (GND1) Skid control ECU (brake actuator assembly) ground 26 (STPO) Stop light switch assembly output 27 - (Not used) 28 (RL-) Rear wheel speed LH (-) signal input 29 (RL+) Rear wheel speed LH (+) power supply output 30 (FR-) Front wheel speed RH (-) signal input 31 (FR+) Front wheel speed RH (+) power supply output 32 - (Not used) 33 (CSW) VSC OFF switch (combination switch assembly) input 34 - (Not used) 35 (STP) Stop light switch assembly input 36 (CA2H) CAN communication line H 37 (CA2L) CAN communication line L 38 (+BS) Solenoid relay power supply TERMINAL INSPECTION (a) Disconnect the A108 connector and measure the voltage or resistance on the wire harness side...

Toyota Yaris XP210 (2020-2025) Reapir and Service Manual: Brake Fluid

ComponentsCOMPONENTS ILLUSTRATION *1 CENTER COWL TOP VENTILATOR LOUVER *2 BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY *3 HOOD TO COWL TOP SEAL - - ILLUSTRATION *1 FRONT DISC BRAKE BLEEDER PLUG *2 FRONT DISC BRAKE BLEEDER PLUG CAP *3 REAR DISC BRAKE BLEEDER PLUG *4 REAR DISC BRAKE BLEEDER PLUG CAP Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...
