DESCRIPTION

This DTC is stored when LIN communication between the certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator or upper bracket assembly) stops for 10 seconds or more.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B278187

Steering Lock System Missing Message

No communication between certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator or upper bracket assembly) for 10 seconds or more.

  • Certification ECU (smart key ECU assembly)
  • Steering lock ECU (steering lock actuator or upper bracket assembly)
  • Wire harness or connector

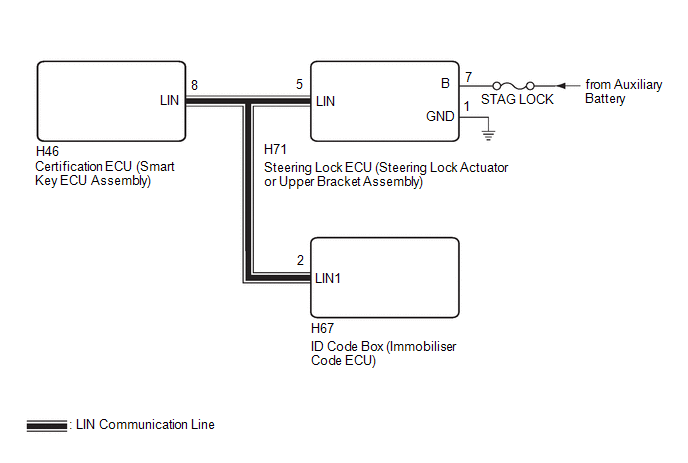

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before performing the inspection, check that DTC B2786 or B278C is not output.

    Click here

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • Before replacing the certification ECU (smart key ECU assembly), ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly), refer to Registration.

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Smart Key > Clear DTCs
NEXT

2.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Smart Key > Trouble Codes

Result

Proceed to

DTC B278187 and B278588 are output

A

Only DTC 278187 is output

B

DTC B278187 and B278588 are not output

C

A

GO TO DTC CHART

C

USE SIMULATION METHOD TO CHECK

B

3.

CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - AUXILIARY BATTERY AND BODY GROUND)

(a) Disconnect the H71 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H71-1 (GND) - Body ground

Always

Below 1 Ω

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

H71-7 (B) - Body ground

Ignition switch off

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY))

(a) Disconnect the H46 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the H71 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H71-5 (LIN) - H46-8 (LIN)

Always

Below 1 Ω

OK

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
