Toyota Yaris: Lin Communication System / Communication between ECUs connected by LIN Bus off (B278588)

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Power Source & Network / Networking / Lin Communication System / Communication between ECUs connected by LIN Bus off (B278588)

DESCRIPTION

This DTC is stored when LIN communication between the certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator or upper bracket assembly) stops for 10 seconds or more.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B278588

Communication between ECUs connected by LIN Bus off

No communication between steering lock ECU (steering lock actuator or upper bracket assembly) and certification ECU (smart key ECU assembly) for 10 seconds or more.

  • Certification ECU (smart key ECU assembly)
  • Steering lock ECU (steering lock actuator or upper bracket assembly)
  • Wire harness or connector

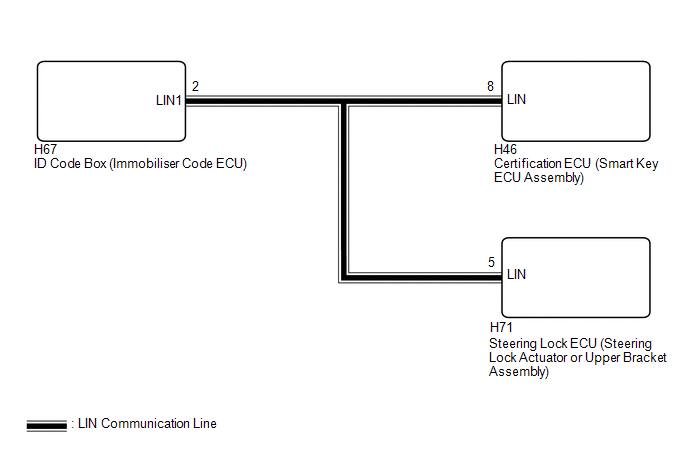

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry & Start (CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • Before replacing the certification ECU (smart key ECU assembly) or steering lock ECU (steering lock actuator or upper bracket assembly), refer to Registration.

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Smart Key > Clear DTCs
NEXT

2.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Smart Key > Trouble Codes

Result

Proceed to

DTC 278588 is output

A

DTC 278588 is not output

B

B

USE SIMULATION METHOD TO CHECK

A

3.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Smart Key > Clear DTCs
NEXT

4.

CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

(a) Disconnect the H71 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(b) Check for DTCs.

Body Electrical > Smart Key > Trouble Codes

Result

Proceed to

DTC 278588 is output

A

DTC 278588 is not output

B

B

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

A

5.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Smart Key > Clear DTCs
NEXT

6.

CHECK ID CODE BOX (IMMOBILISER CODE ECU)

(a) Disconnect the H67 ID code box (immobiliser code ECU) connector.

(b) Check for DTCs.

Body Electrical > Smart Key > Trouble Codes

Result

Proceed to

DTC 278588 is output

A

DTC 278588 is not output

B

B

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

A

7.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Smart Key > Clear DTCs
NEXT

8.

CHECK HARNESS AND CONNECTOR

(a) Disconnect the H46 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the H67 ID code box (immobiliser code ECU) connector.

(c) Disconnect the H71 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

H46-8 (LIN) - H71-5 (LIN)

Always

Below 1 Ω

H46-8 (LIN) - Body ground

Always

10 kΩ or higher

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
