Toyota Yaris: Lighting (int) / Room Light
Components
COMPONENTS
ILLUSTRATION
| *1 | NO. 1 ROOM LIGHT ASSEMBLY | *2 | NO. 1 ROOM LIGHT BULB |
| *3 | NO. 1 ROOM LIGHT LENS | *4 | NO. 1 ROOM LIGHT HOUSING |
Removal
REMOVAL
PROCEDURE
1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

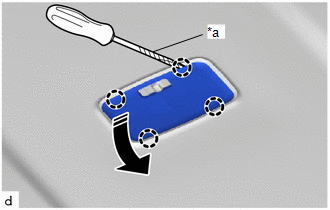

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the No. 1 room light lens as shown in the illustration.
| *a | Protective Tape |
 | Remove in this Direction |

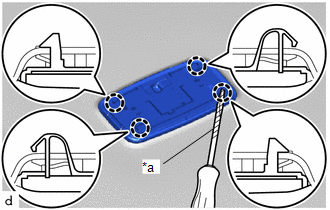

| (b) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to separate the No. 1 room light housing from the roof headlining. |
|
| (c) Using a screwdriver with its tip wrapped in protective tape, disengage the claws and guide to remove the No. 1 room light housing from the room light switch base. |
|
2. REMOVE NO. 1 ROOM LIGHT BULB

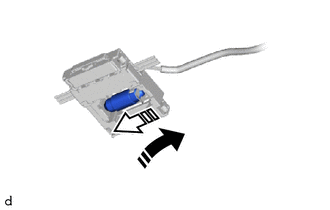

(a) Remove the No. 1 room light bulb as shown in the illustration.
 | Remove in this Direction (1) |
 | Remove in this Direction (2) |
Installation
INSTALLATION
PROCEDURE
1. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
(a) Install the No. 1 room light bulb as shown in the illustration.
 | Install in this Direction (1) |
 | Install in this Direction (2) |
2. INSTALL NO. 1 ROOM LIGHT BULB

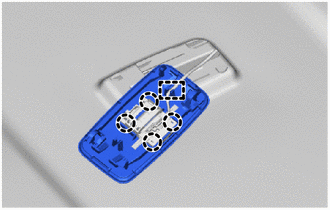

| (a) Engage the guide and claws to install the No. 1 room light housing to the No. 1 room light switch base. |
|

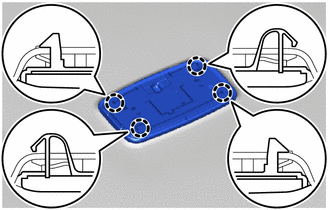

| (b) Engage the claws to install the No. 1 room light housing to the roof headlining. |
|

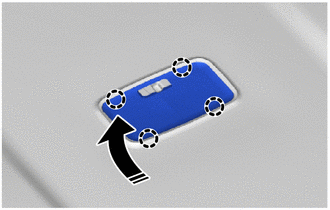

(c) Engage the claws to install the No. 1 room light lens as shown in the illustration.
 | Install in this Direction |
Personal Light
ComponentsCOMPONENTS ILLUSTRATION
*1 MAP LIGHT ASSEMBLY - - RemovalREMOVAL PROCEDURE 1. REMOVE MAP LIGHT ASSEMBLY (a) Using a moulding remover D, disengage the clips to remove the map light assembly as shown in the illustration...
Room Light Bulb
ReplacementREPLACEMENT PROCEDURE 1. REMOVE NO. 1 ROOM LIGHT BULB (a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the No...
