Toyota Yaris: Front Airbag Sensor / Removal

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Vehicle Interior / Supplemental Restraint Systems / Front Airbag Sensor / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front airbag sensor removal/installation are shown below.

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Lane tracing assist system

      Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

      Pre-collision system

      Stop and start system

      Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -
  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

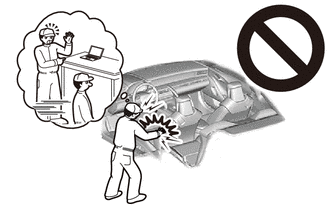

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

CAUTION:

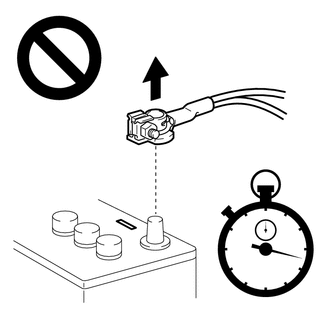

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

3. REMOVE FRONT BUMPER ASSEMBLY

Click here

4. REMOVE FRONT AIRBAG SENSOR

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

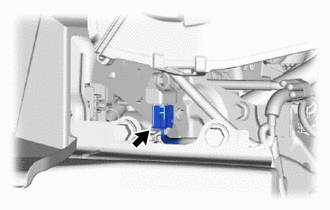

(c) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

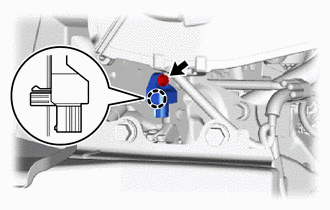

(d) Remove the bolt.

NOTICE:

  • Loosen the bolt while holding the front airbag sensor because the front airbag sensor pin (claw) is easily damaged.
  • If the front airbag sensor has been dropped, replace it with a new one.

(e) Disengage the claw to remove the front airbag sensor.

    Components

    COMPONENTS ILLUSTRATION *1 FRONT AIRBAG SENSOR - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...

    Installation

    INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1...
