Toyota Yaris: Front Airbag Sensor / Components
COMPONENTS

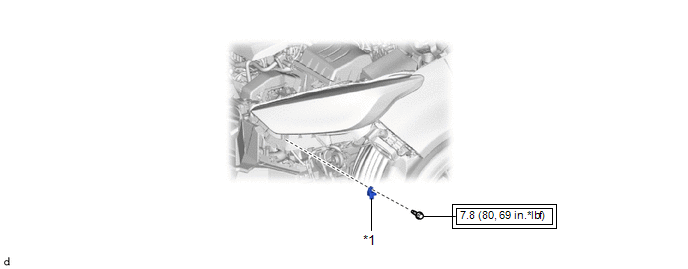

ILLUSTRATION
| *1 | FRONT AIRBAG SENSOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front airbag sensor removal/installation are shown below...
