Toyota Yaris: Rear Seat Outer Belt Assembly / Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.
PROCEDURE
1. REMOVE REAR SEATBACK ASSEMBLY
Click here
2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Click here
3. REMOVE REAR SEAT CUSHION LOCK HOOK
Click here
4. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)
Click here
5. REMOVE DECK BOARD ASSEMBLY
Click here
6. REMOVE DECK FLOOR BOX RH
Click here
7. REMOVE DECK FLOOR BOX LH
Click here
8. REMOVE DECK TRIM REAR COVER
Click here
9. REMOVE FRONT DOOR SCUFF PLATE
Click here
10. REMOVE LAP BELT OUTER ANCHOR COVER
Click here
11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
Click here
12. REMOVE QUARTER TRIM PANEL ASSEMBLY
Click here
13. REMOVE DECK TRIM SIDE PANEL ASSEMBLY
Click here
14. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY

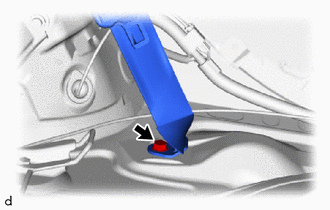

| (a) Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly. |
|
15. REMOVE INNER ROOF SIDE GARNISH
Click here
16. REMOVE REAR SEAT OUTER BELT ASSEMBLY

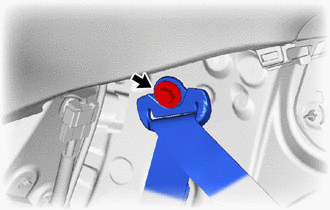

| (a) Remove the bolt to disconnect the shoulder anchor of the rear seat outer belt assembly. |
|

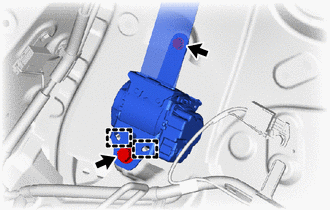

| (b) Remove the 2 bolts to disconnect the retractor of the rear seat outer belt assembly. |
|
(c) Disengage the guides to remove the rear seat outer belt assembly.
Components
COMPONENTS ILLUSTRATION
*1 REAR SEATBACK ASSEMBLY *2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY *3 REAR SEAT CUSHION LOCK HOOK - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...
Inspection
INSPECTION PROCEDURE 1. INSPECT REAR SEAT OUTER BELT ASSEMBLY (a) Before installing the rear seat outer belt assembly, check the ELR function. NOTICE: Do not disassemble the retractor...
