Toyota Yaris: Rear Seat Outer Belt Assembly / Components

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Vehicle Interior / Seat Belt / Rear Seat Outer Belt Assembly / Components

COMPONENTS

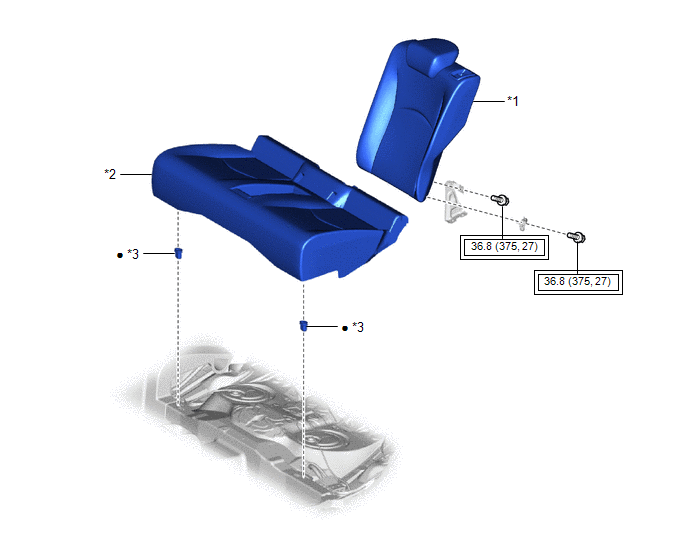

ILLUSTRATION

*1

REAR SEATBACK ASSEMBLY

*2

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

*3

REAR SEAT CUSHION LOCK HOOK

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

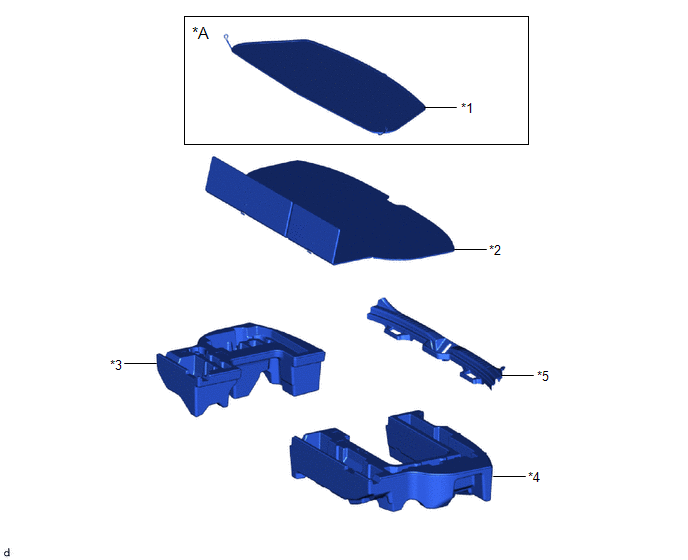

*A

w/ Package Tray Trim

-

-

*1

PACKAGE TRAY TRIM PANEL ASSEMBLY

*2

DECK BOARD ASSEMBLY

*3

DECK FLOOR BOX RH

*4

DECK FLOOR BOX LH

*5

DECK TRIM REAR COVER

-

-

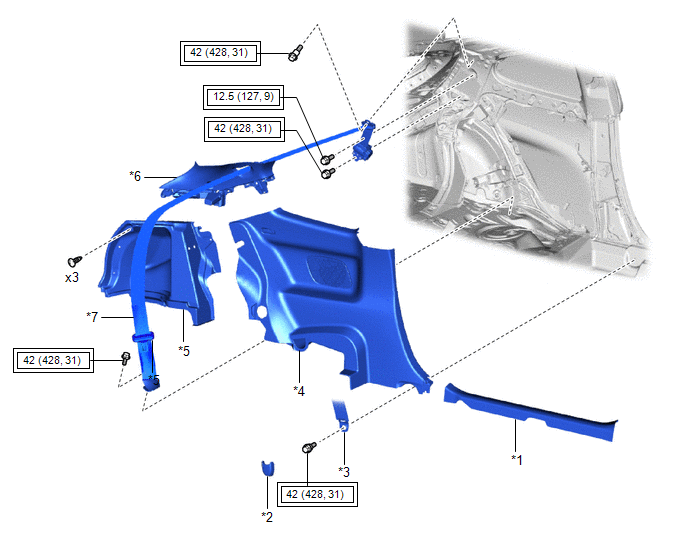

ILLUSTRATION

*1

FRONT DOOR SCUFF PLATE

*2

LAP BELT OUTER ANCHOR COVER

*3

FRONT SEAT OUTER BELT ASSEMBLY

*4

QUARTER TRIM PANEL ASSEMBLY

*5

DECK TRIM SIDE PANEL ASSEMBLY

*6

INNER ROOF SIDE GARNISH

*7

REAR SEAT OUTER BELT ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

    Rear Seat Outer Belt Assembly

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The procedure listed below is for the LH side. PROCEDURE 1...
