REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

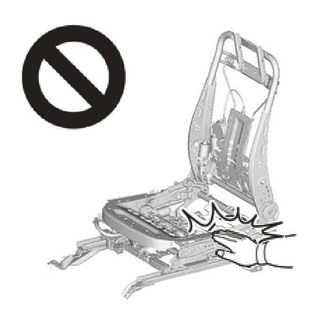

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Link

      Lane tracing assist system

      Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

      Pre-collision system

      Stop and start system

      Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Effect/Inoperative Function When Necessary Procedures are not Performed

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the driver side and front passenger side.
  • The procedure listed below is for the driver side.

PROCEDURE

1. REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click here

2. REMOVE FRONT SEAT VERTICAL ADJUSTER HANDLE (for Driver Side)

Click here

3. REMOVE NO.1 RECLINING HINGE COVER

Click here

4. REMOVE RECLINING ADJUSTER RELEASE HANDLE

Click here

5. REMOVE SEAT ADJUSTER COVER CAP (for Driver Side)

Click here

6. REMOVE FRONT SEAT CUSHION SHIELD

Click here

7. REMOVE FRONT SEAT INNER CUSHION SHIELD

Click here

8. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click here

9. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Click here

10. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Click here

11. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY

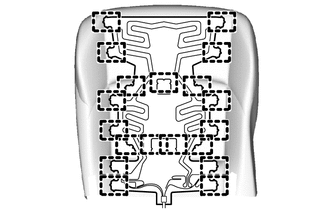

(a) for Sporty Seat Type:

(1) Remove the 19 tag pins and front seat cushion heater assembly from the separate type front seat cushion cover.

(b) for Sports Seat Type:

(1) Remove the 14 tag pins and front seat cushion heater assembly from the separate type front seat cushion cover.

    Components

    COMPONENTS ILLUSTRATION *A for Driver Side *B for Front Passenger Side *1 FRONT SEAT VERTICAL ADJUSTER HANDLE *2 NO.1 RECLINING HINGE COVER *3 RECLINING ADJUSTER RELEASE HANDLE *4 SEAT ADJUSTER COVER CAP *5 FRONT SEAT CUSHION SHIELD *6 FRONT SEAT INNER CUSHION SHIELD ILLUSTRATION *1 SEPARATE TYPE FRONT SEATBACK ASSEMBLY - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...

    Inspection

    INSPECTION PROCEDURE 1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
